Field test: PV Modules

A real world comparison between Mono, Poly, PERC and Dual PV Modules.

Total solar yield: --
S
Total solar yield: --
S
Total solar yield: --
S
Total solar yield: --
S
Total solar yield: --
E
Total solar yield: --
W
Romania
--
--
Installation date: 09-03-2020
--
--
--
--
--
--
--
Irradiance

* This is a field test and the results are specific for this installation on this location please research which is the best solution for your own situation as the results can be different based on environmental influences.

Total solar yield as of 27/03/2023 when the results were reset:
Mono: 9158 kWh
Split-cell: 9511 kWh
Poly: 9113 kWh
Perc: 9471 kWh
Perc-east: 1970 kWh
Perc-west: 1730 kWh

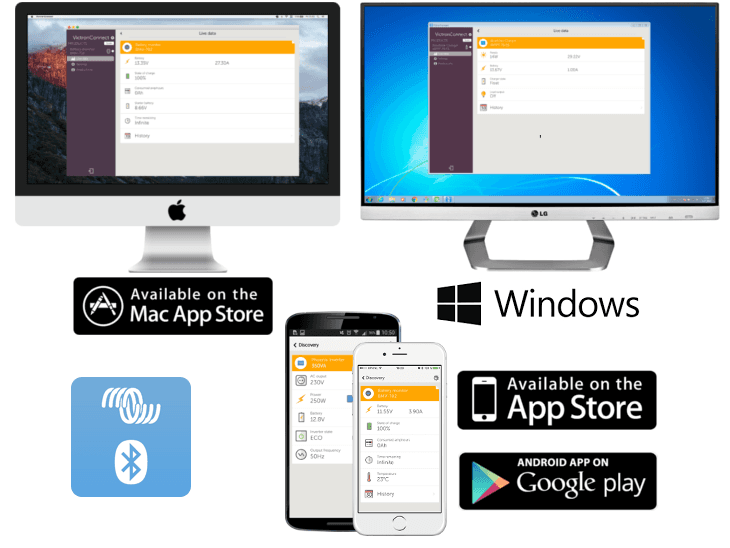

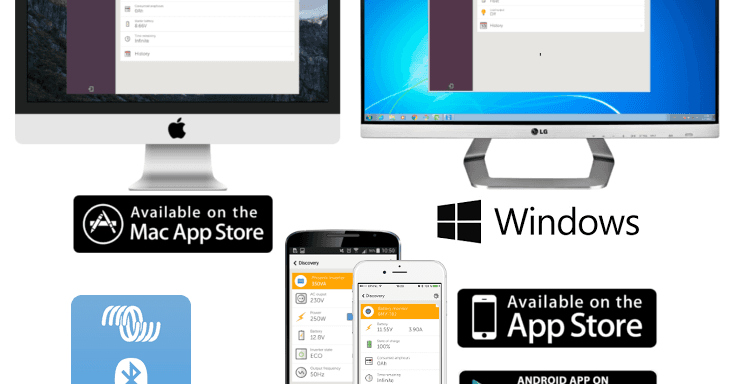

VictronConnect v1.2 released: Now includes Mac OS X & Windows PC

Great news! VictronConnect is now available for Mac OS X & Windows PC, plus there have been some upgrades in this new version for iOS and Android.

If you are not familiar with VictronConnect and the range of possibilities see earlier blogs, but for those of you familiar with this software (and the hardware it connects to) you have probably guessed where this is all going – one easy to use application to configure and monitor many Victron Energy products, available on most devices and platforms. What more could you ask for?

Download

This new version of VictronConnect is available here: https://www.victronenergy.com/support-and-downloads/software#victronconnect-app

Manual

Before you rush into installing please read the manual and make sure it is compatible with your device/platform: https://www.victronenergy.com/live/victronconnect:start

Please note the Windows version doesn’t include Bluetooth support. For use only with VE.Direct to USB interface. Bluetooth supported devices use the VE.Direct Bluetooth Smart dongle.

Changelog v1.2

  • New platforms: Windows and Mac OS X versions are now available.
  • Add action bar to iOS keyboard with a minus (-) button and a “Done” button
  • Fix “Clear history” button on MPPT and BMV
  • Use different name in each step during the bluetooth dongle firmware update. (VE.Direct BLE dongle (legacy) and VE.Direct BLE dongle 2 (legacy))
  • Show Bluetooth/VE.Direct icon depending on the connection type.(Android and MacOS)

BMV

  • Fix an issue that returns a wrong value by setting to zero the alarm/relay temperature settings
  • Fix typo in temperature warning message shown on the live data page
  • Improve max/min values handling on alarms/relay settings pages

BlueSolar MPPT

  • Show description of the selected load mode algorithm
  • Fix “Clear history” button: it was partially hidden on the history page
  • Auto scale yield and consumption unit on the history page from kWh to Wh
  • Allow negative values for midnight-point shift on streetlight settings
  • Add load current to the live data page
  • Fix information box that warns the user that 30 day history is only available since firmware v1.16.

Conclusion

Hats off to the developers and have a great weekend!

John Rushworth
