This document explains one of the ways to automatically start and stop a generator. See here for the other options.

More generator information about using a generator in combination with Victron is available here.

The relay and connector block that needs to be wired to the generator control input is named the Alarm relay; in the various manuals.

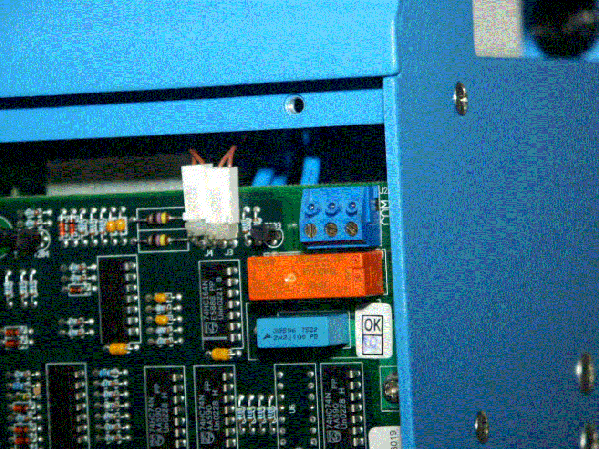

To do the wiring easily; be aware that its detachable: you can pull the block off; do the wiring; and then push it back on.

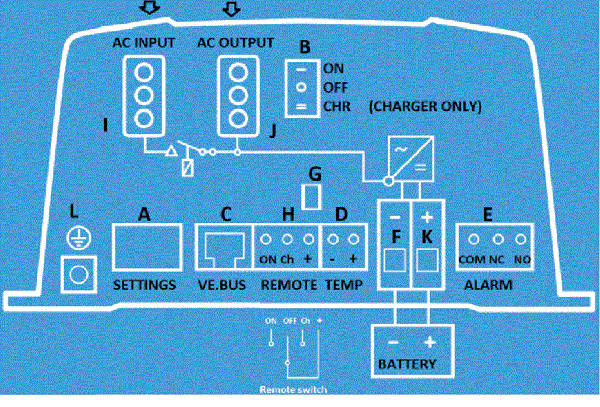

Note that there are three contacts; left to right: Normally Closed (NC) , Normally Open (NO), Common (COM).

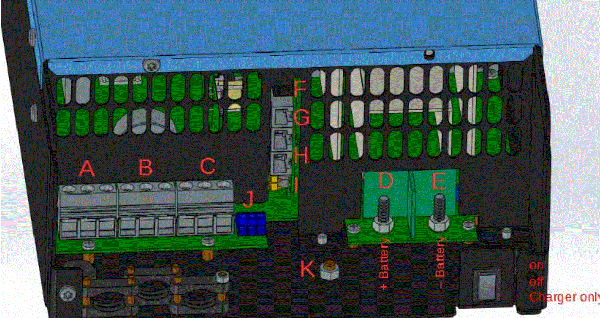

The connector is J in the picture. Left to right: NO, NC, COM.

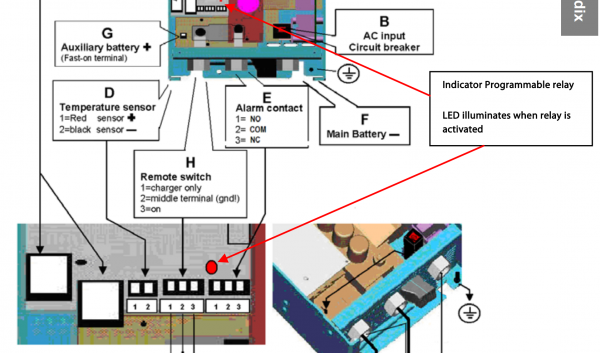

And, on our Multi 500, 800, 1200 and coming 1600, is contact E; here:

Open VEConfigure, navigate to the Virtual Switch, and there select 'dedicated generator control'.

Note that below are just example values; configure them to the suit the type of batteries and rest of system.
