Blue Smart IP65 Charger

1. Safety instructions

In this section:

Danger

Warning_symbol.svg

WARNING: CAREFULLY READ AND FOLLOW ALL SAFETY INSTRUCTIONS

  • Carefully read the manual before the charger is installed and operated; retain the manual in a safe place for future reference.

  • The charger must not be installed or operated by any of the following persons, unless they are under strict instruction and supervision:

    1. Anyone who lacks the appropriate knowledge, experience or competence, required for safe installation and/or usage.

    2. Anyone with compromised/reduced physical, sensory or mental capabilities, which may effect safe installation and/or usage (including children).

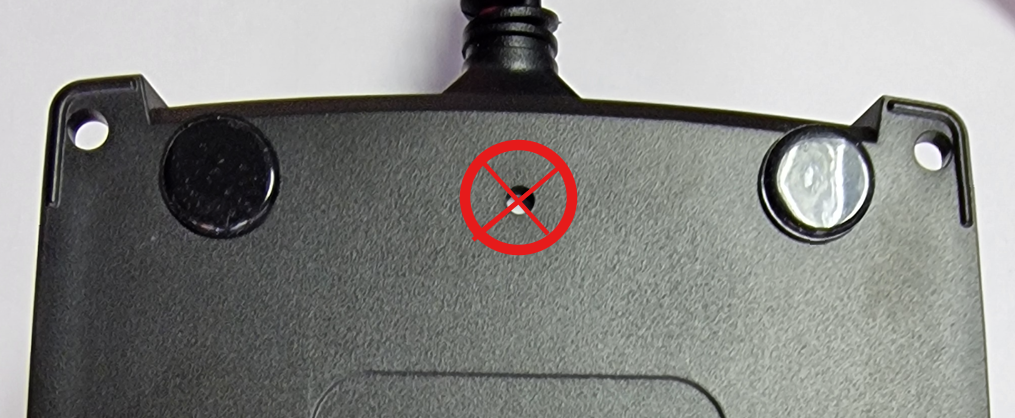

  • Charger installation and operation

    1. Install the charger in a location with good natural airflow/ventilation and sufficient unobstructed space around it; refer to the the 'Installation' section for more detail.

    2. Install the charger on a non-flammable substrate and ensure there are no heat-sensitive items in the immediate vicinity; it is normal for the charger to become hot during operation.

    3. Install the charger in a location where it is protected from environmental conditions such as direct sunlight, water, high moisture and dust, and also located well away from any flammable liquids or gasses.

    4. Do not install or place/operate the charger on top of the battery, directly above the battery, or in a sealed compartment with the battery; batteries can emit explosive gasses.

    5. Do not cover or place any other items on top of the charger.

  • Battery installation and charging

    1. Install and charge the battery in a location with good natural airflow/ventilation.

    2. Ensure that there are no ignition sources near the battery; batteries can emit explosive gasses.

    3. Battery acid is corrosive; if battery acid comes into contact with skin immediately rinse with water.

    4. Do not charge non-rechargeable batteries or Li-ion batteries if the battery temperature is below 0°C.

  • Battery DC connections

    1. Ensure that the DC system is fully shut down/isolated prior to disconnection of any existing cabling and/or new connections are made to the battery/DC system.

    2. If charging a battery in a vehicle, the charger must be connected in the following order:

      1. Connect the DC cable to the battery terminal that is not connected to the chassis

      2. Connect the remaining DC cable to the chassis, away from the battery and any fuel lines/sources

      3. Connect the AC power cable to a mains power outlet

      4. After charging, the charger must the disconnected in reverse of the connection order

  • Mains supply AC connection

    1. AC connection to the mains supply must be in accordance with local electrical regulations.

    2. Do not operate the charger if the AC power cable is damaged, contact a service agent.

  • Charger setup

    1. Refer to the battery manufacturers instructions and specifications to ensure the battery is suitable for use with this charger and confirm the recommended charge settings.

    2. The default charge preset ('Normal' mode) combined with adaptive charge logic is well suited for most common battery types; such as flooded lead-acid, AGM and Gel.

      Selection of 'Li-ion' charge mode and advanced configuration with user defined settings is possible using the VictronConnect app and a Bluetooth enabled device (such as a mobile phone or tablet).
