Battery Switch - manual

Mounting

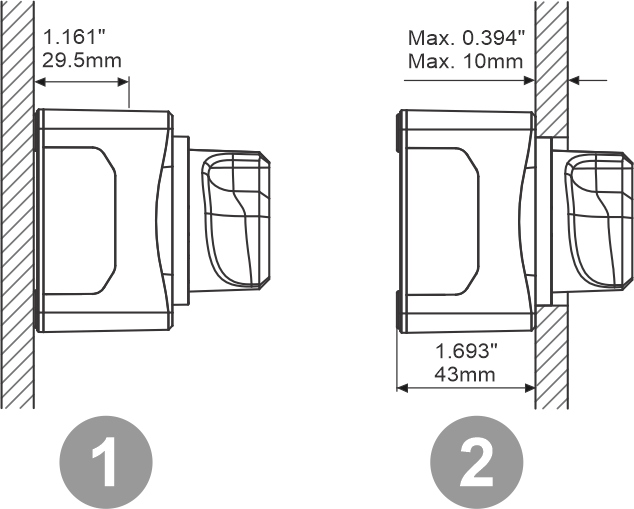

The Battery Switch can be mounted in two ways:

  1. Surface mount

  2. Rear panel mount


Two different mounting ways.

The battery switch packaging contains a actual size cutout. Use this to mark the screw holes and in case of rear panel mount to mark the hole for the knob. For the dimensions of the Battery Switch see the Enclosure dimensions chapter.

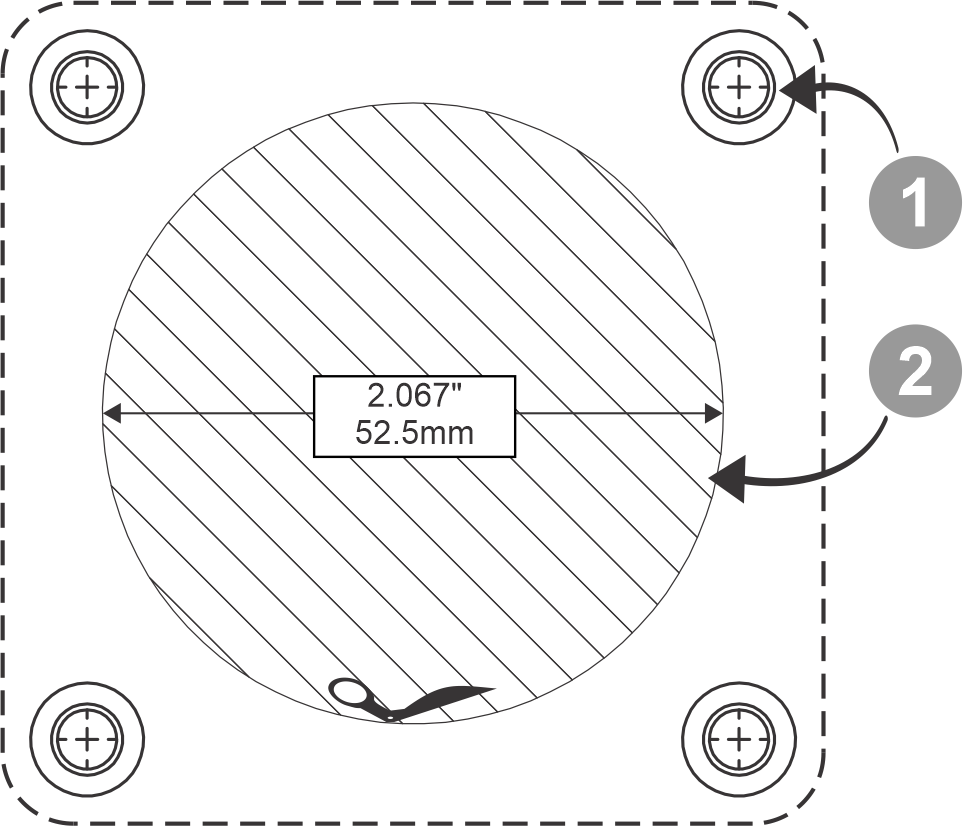

  1. Screw holes. 4 holes, one on each corner.

  2. Mounting hole for rear panel mounting.


Mounting hole template. Not to scale, use the cutout from the Battery Switch packaging.
