System examples

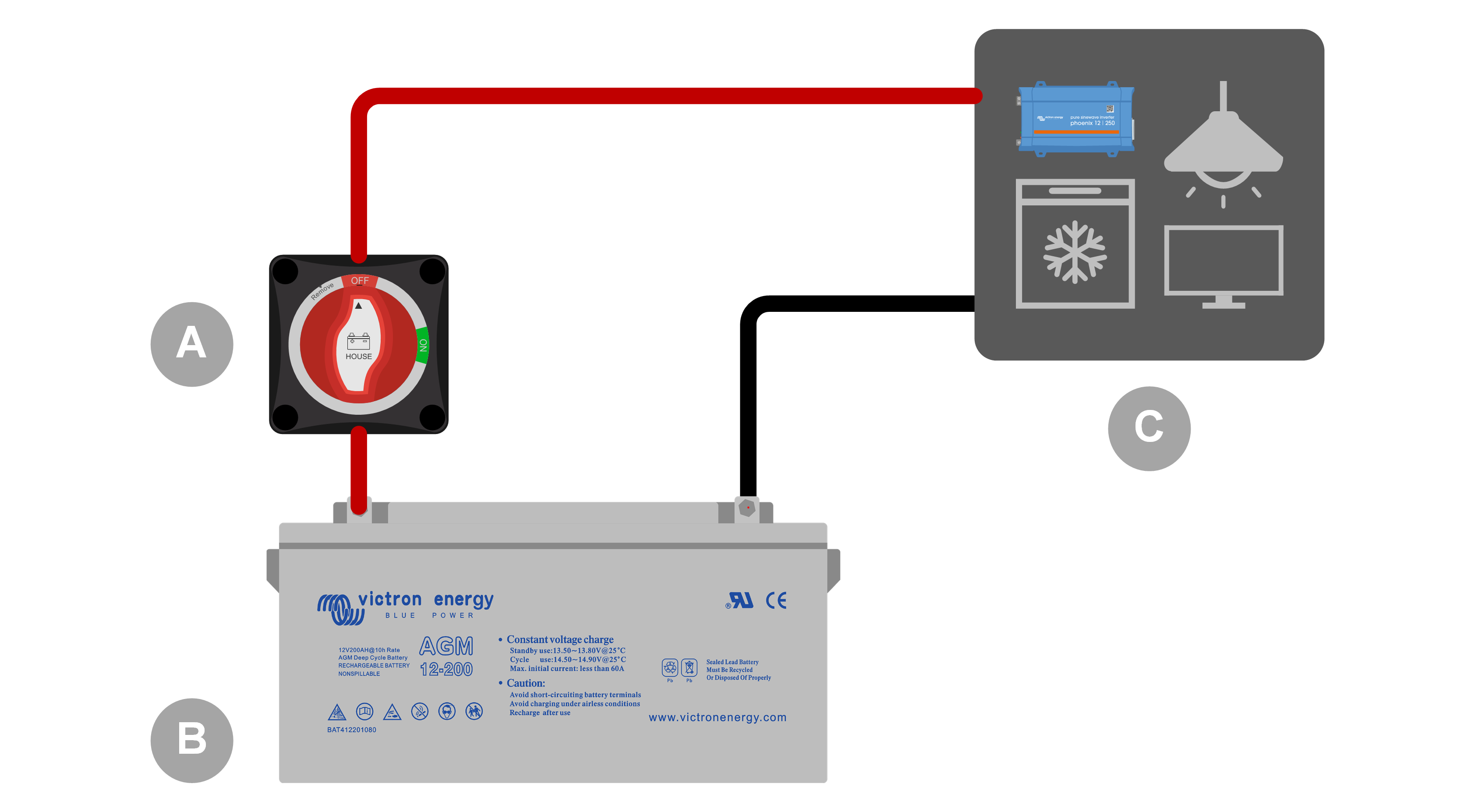

Battery Switch used to disconnect the house system from the house battery. Use to preserve battery charge, system maintenance or in an emergency. |

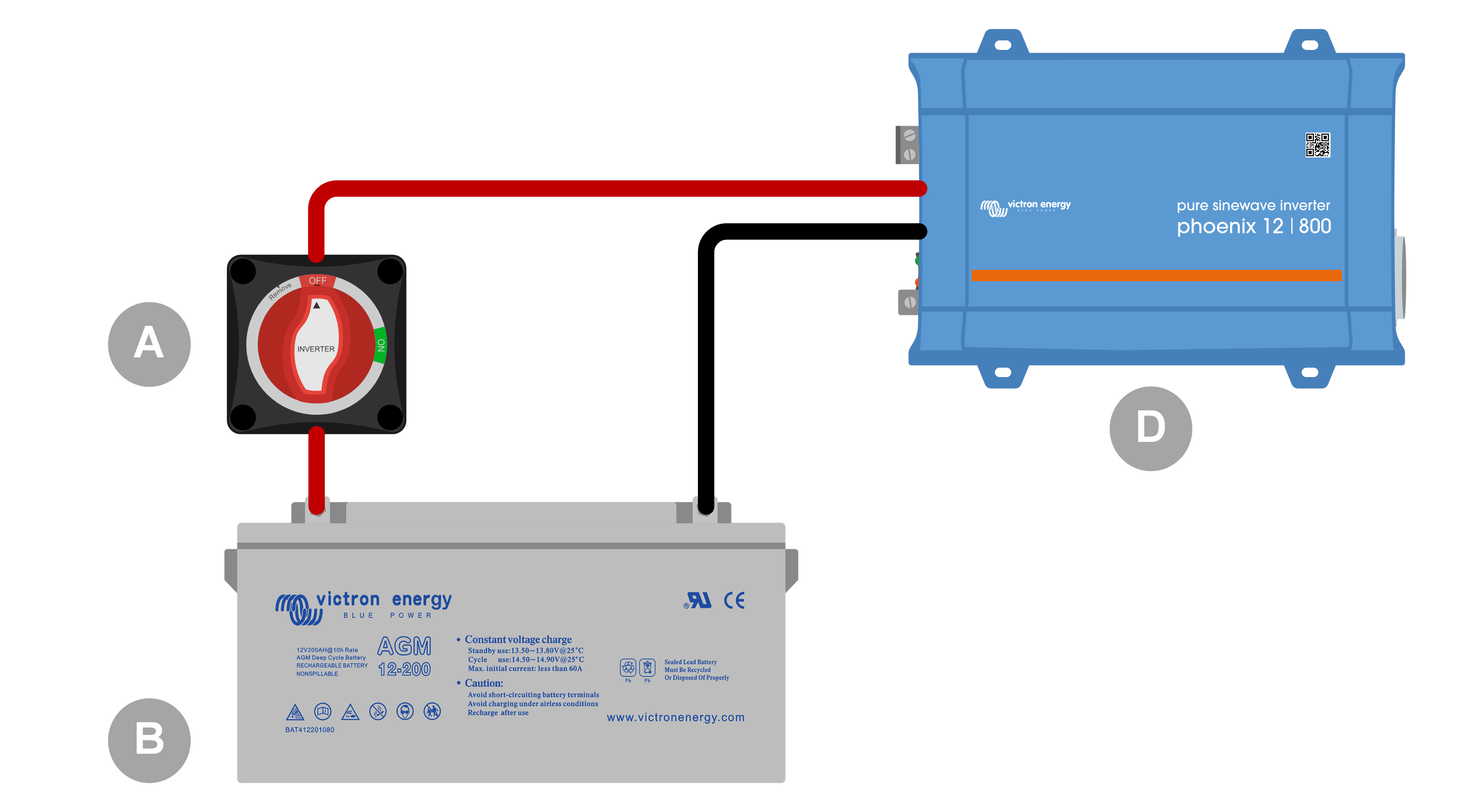

Battery Switch used to disconnect an inverter from the house battery. Use to preserve battery charge, system maintenance or in an emergency. | ||

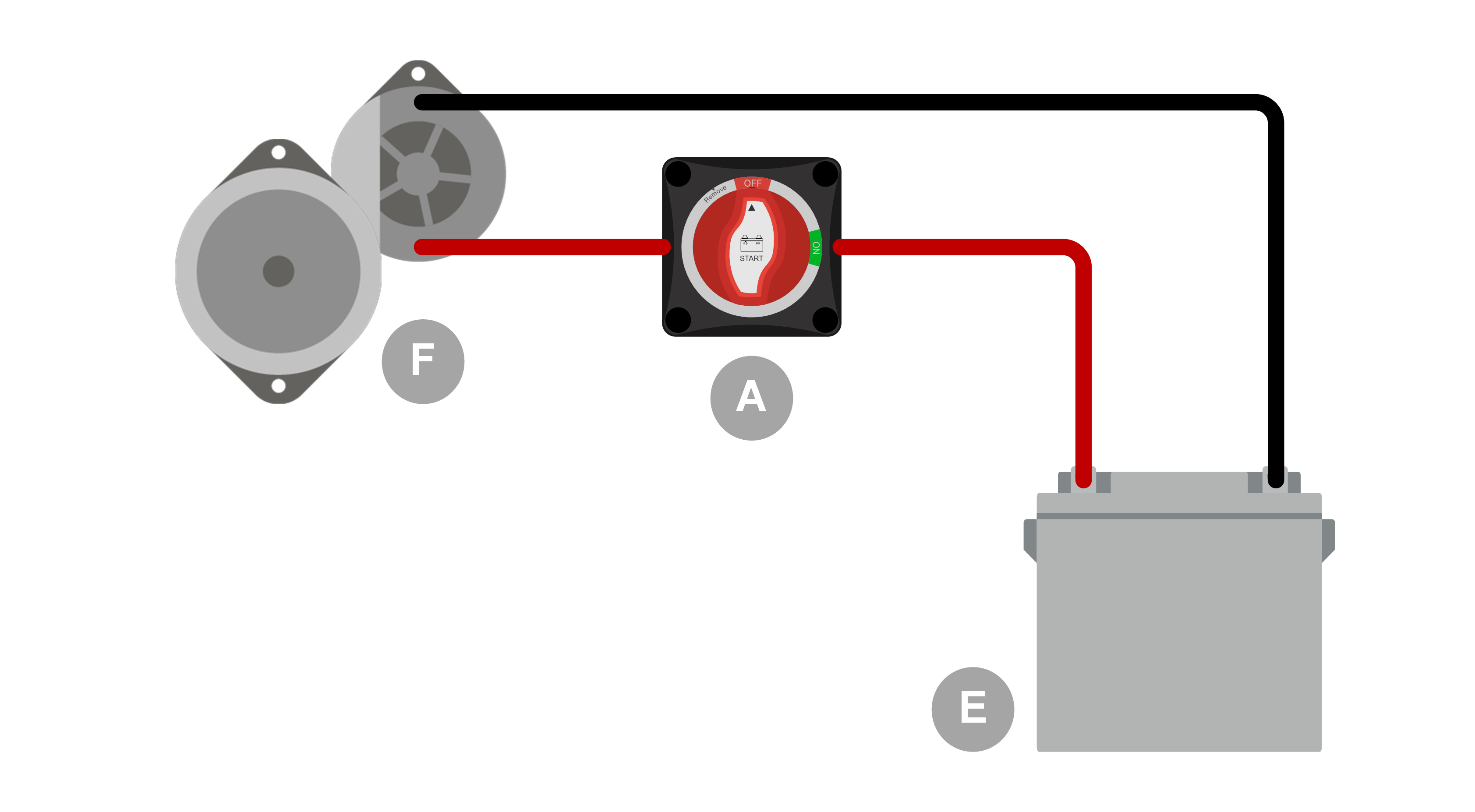

Battery Switch used to disconnect alternator from the starter battery. Use to preserve battery charge, system maintenance or in an emergency. |

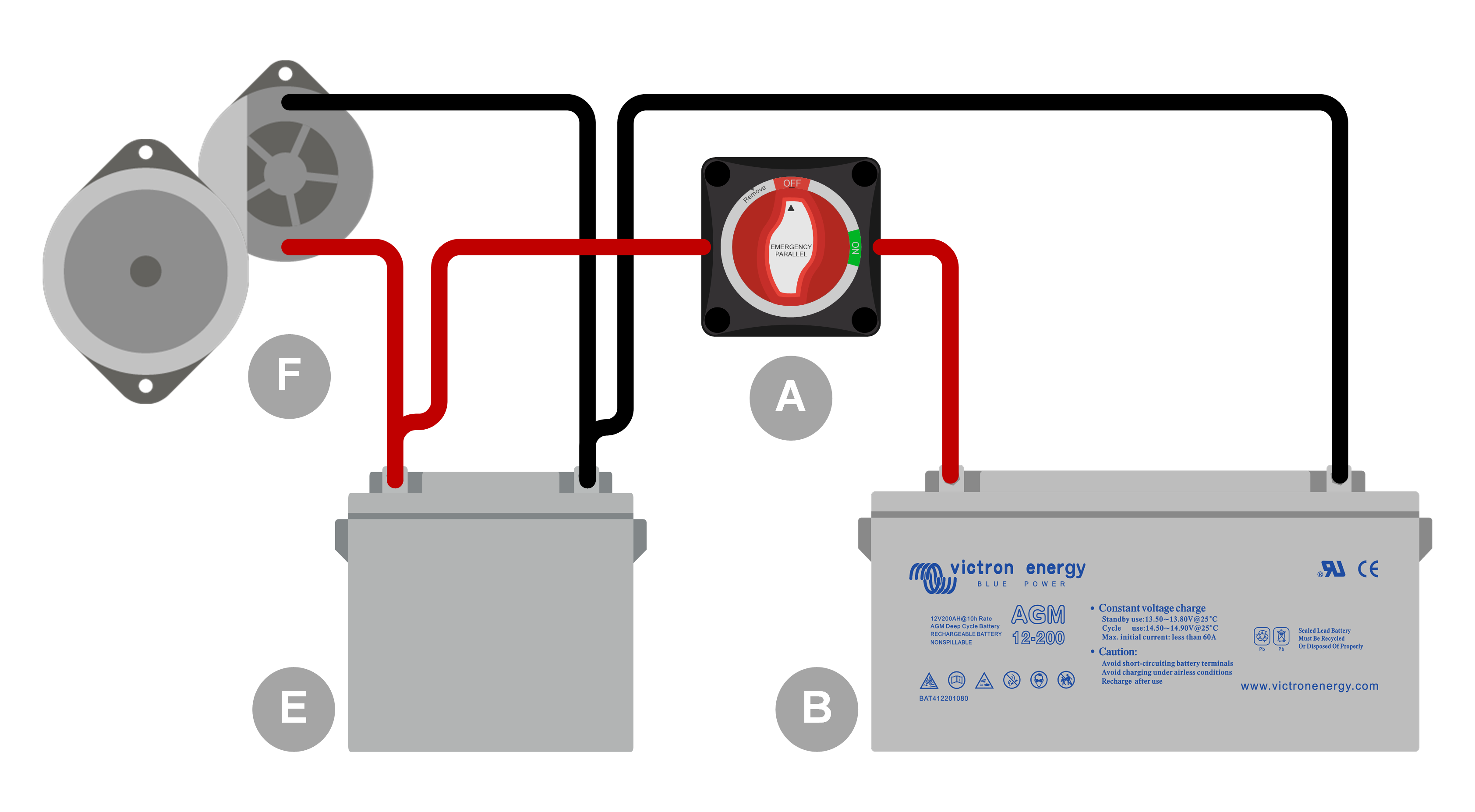

Battery Switch used to parallel connect the house battery to the starter battery. Use in case of an emergency, like a flat starter battery or a flat house battery. |
ID | Legend |
|---|---|
A | Battery Switch |
B | House battery |
C | House system DC loads and/or chargers |
D | Inverter |
E | Starter battery |
F | Engine and alternator |
