Digital Multi Control

Digital Multi Control
Dimensions

Prev

9. Dimensions

In this section:

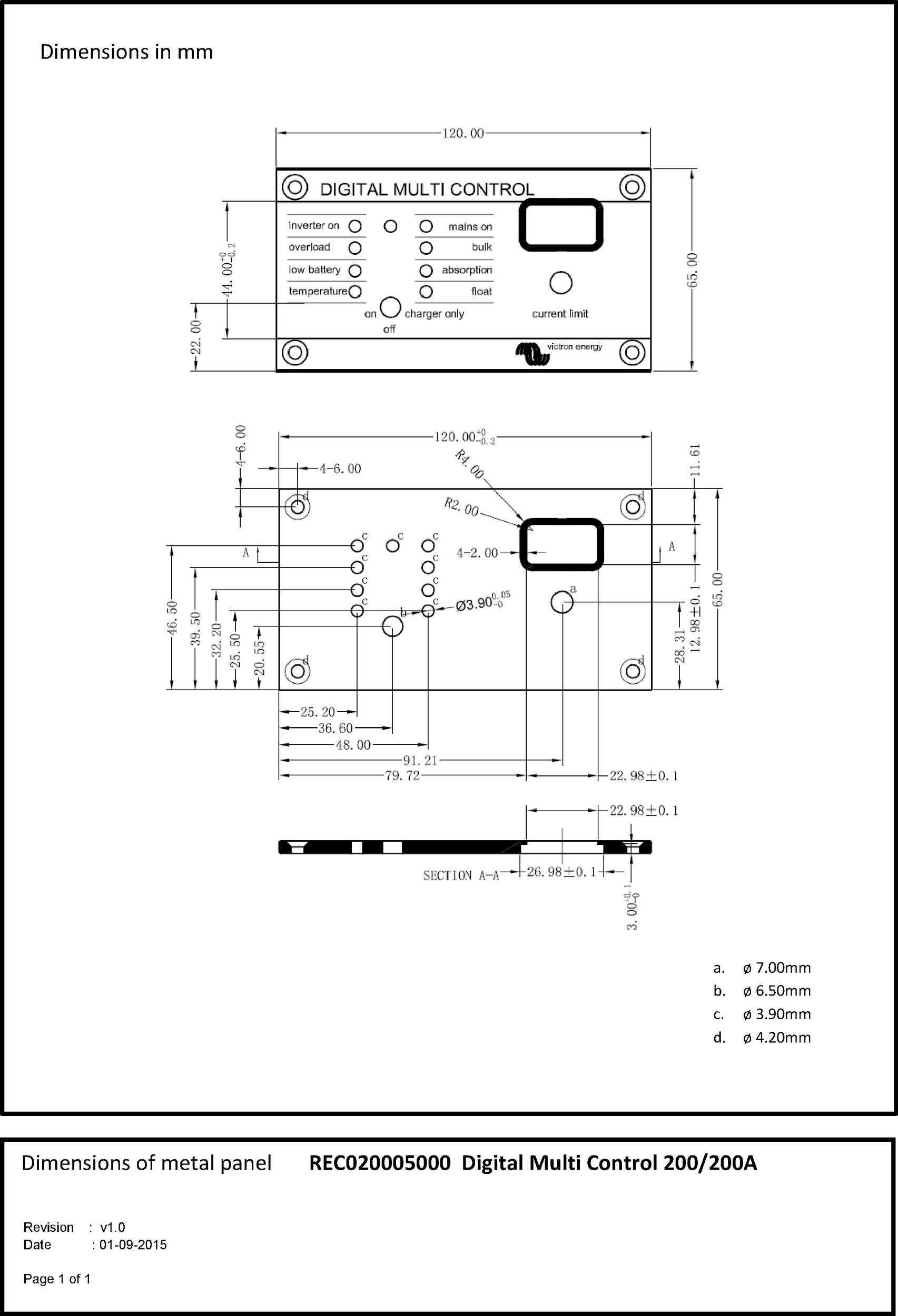

Dimensions-of-metal-panel-for-REC020005000-Digital-Multi-Control-200-200___.pdf

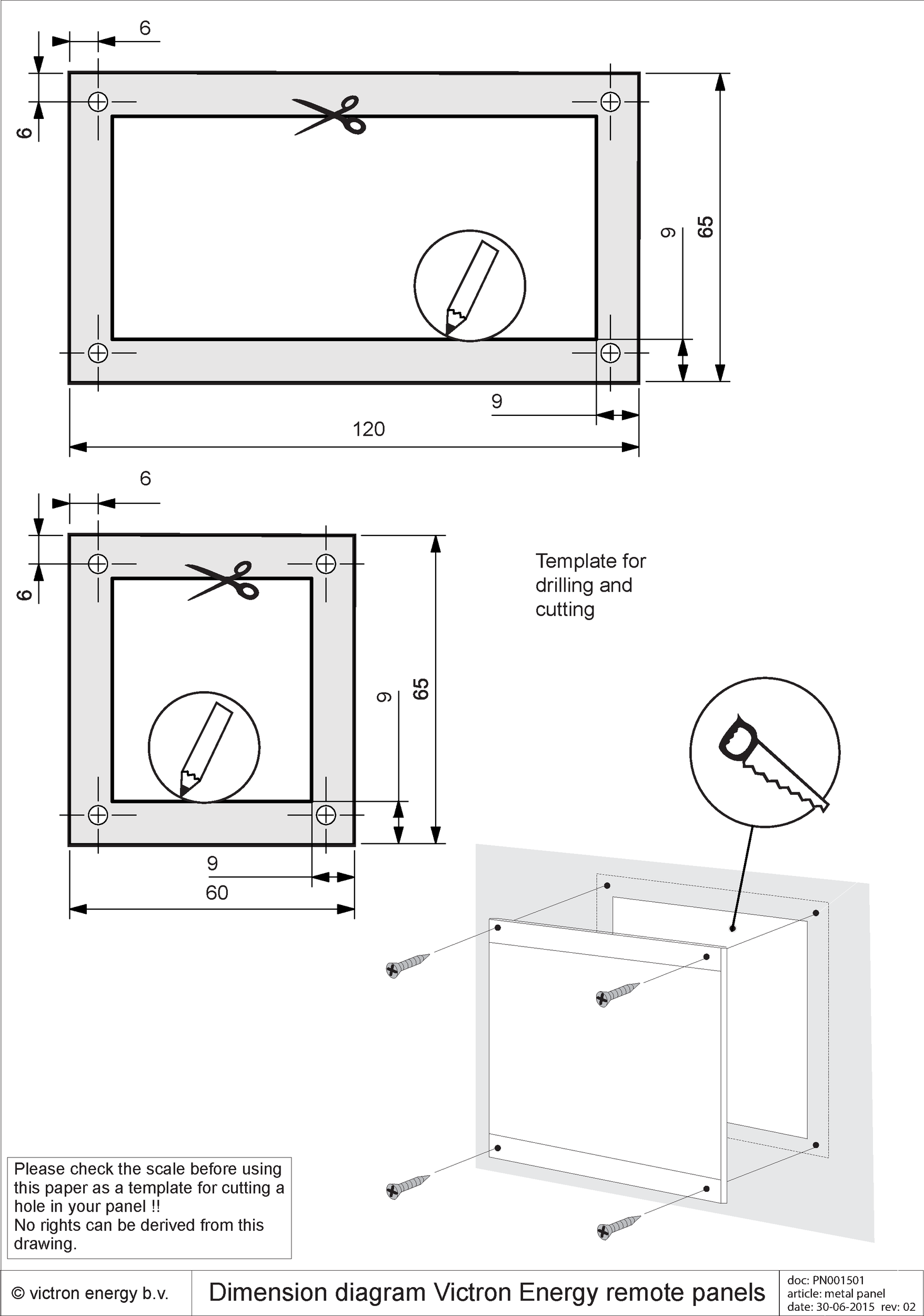

Cut_Out_Dimensions_Remote_Panels_Pn001501-rev02.pdf
