MultiPlus-II External Transfer Switch application

MultiPlus-II External Transfer Switch application
Wiring diagrams

Prev

6. Wiring diagrams

In this section:

6.1. General wiring diagram
6.2. Wiring diagram with added Ziehl relay

6.1. General wiring diagram

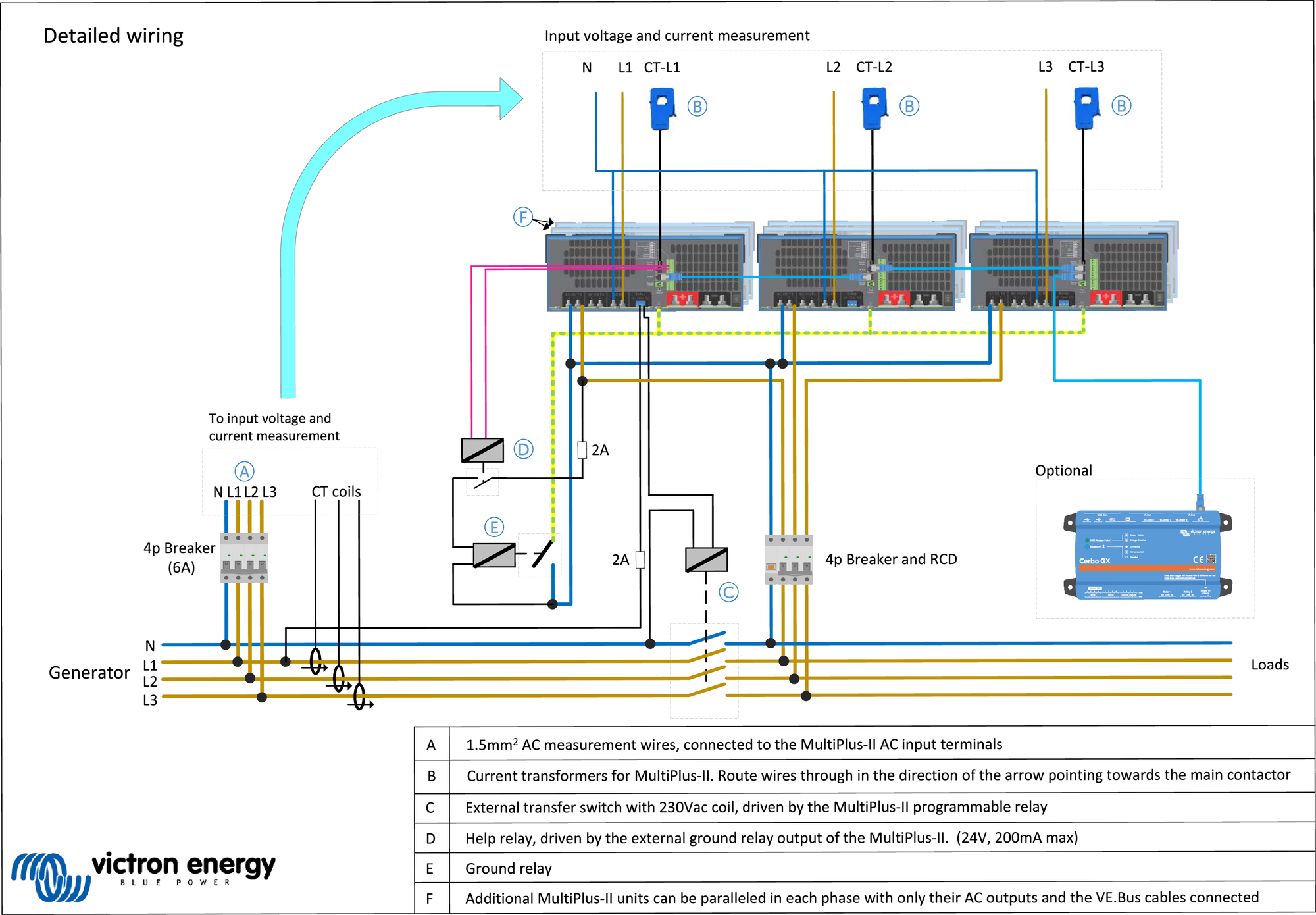

MultiPlus-II_external_transferswitch_-_wiring_diagram_full.pdf

6.2. Wiring diagram with added Ziehl relay

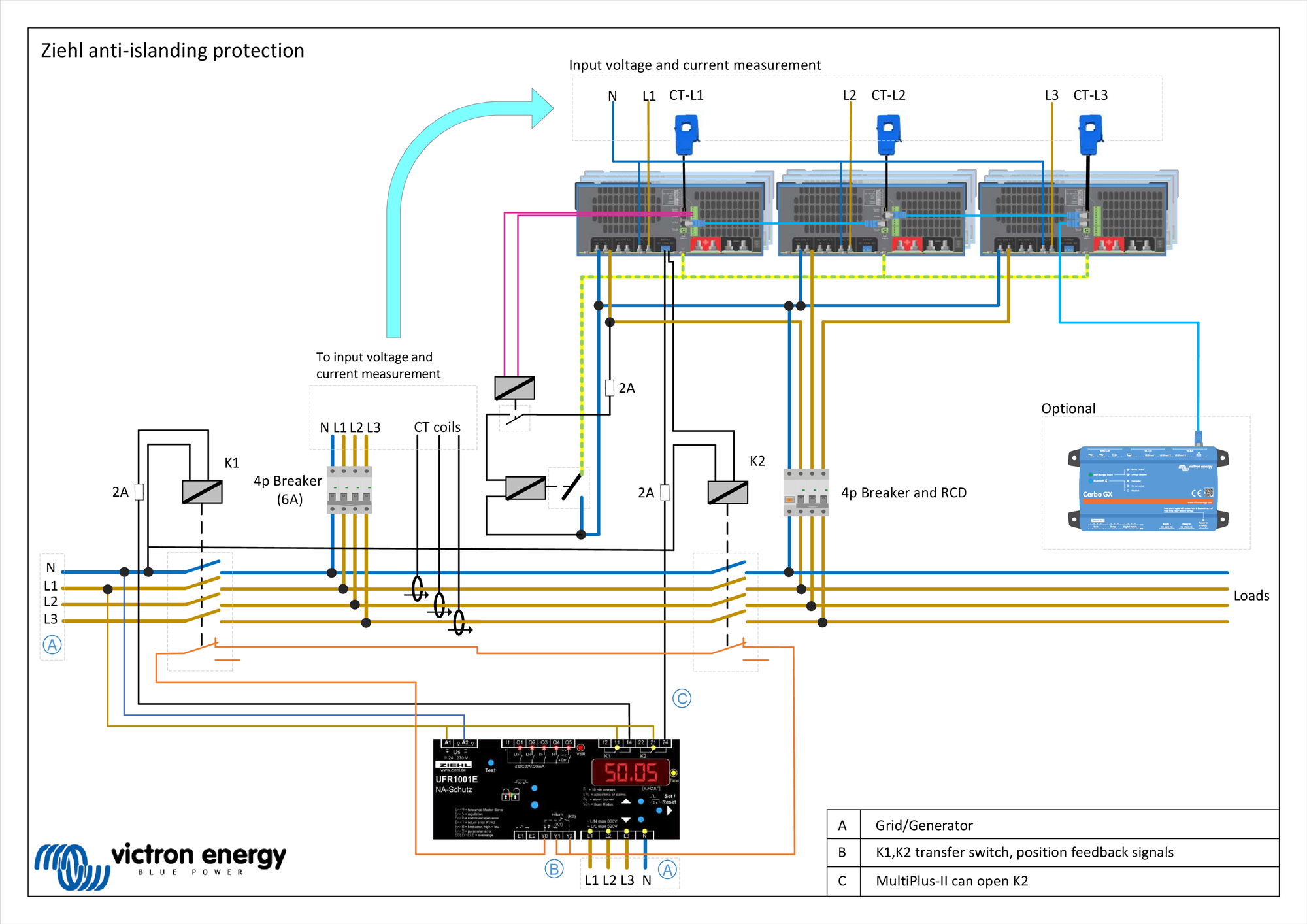

MultiPlus-II_external_transferswitch_-_use_in_combination_with_Ziehl_UFR1001E_diagram.pdf
