MPPT solar charger manual

9. Technical specifications

In this section:

9.1. Specifications 150/60 and 150/70

MPPT 150/60

MPPT 150/70

Battery voltage

12/24/48V Auto select, 36V: manual select

Maximum battery current

60A

70A

Nominal PV power, 12V 1a,b

860W

1000W

Nominal PV power, 24V 1a,b

1720W

2000W

Nominal PV power, 36V 1a,b

2580W

3000W

Nominal PV power, 48V 1a,b

3440W

4000W

Max. PV short circuit current 2

50A

50A

Maximum PV open circuit voltage

150V absolute maximum coldest conditions

145V start-up and operating maximum

Peak efficiency

98%

Self-consumption

12V: less than 35mA / 48V: less than 20mA

Charge voltage 'absorption'

Default setting: 14.4V / 28.8V / 43.2V / 57.6V

Charge voltage 'float'

Default setting: 13.8V / 27.6V / 41.4V / 55.2V

Charge voltage 'equalization' 3

Default setting: 16.2V / 32.4V / 48.6V / 64.8V

Charge algorithm

Multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm

Temperature compensation

-16mV/°C / -32mV/°C / -64mV/°C

Protection

PV reverse polarity / Output short circuit / Over temperature

Operating temperature

-30°C to +60°C (full rated output up to 40°C)

Humidity

95%, non-condensing

Maximum altitude

5000m (full rated output up to 2000m)

Environmental condition

Indoor type 1, unconditioned

Pollution degree

PD3

Data communication

VE.Direct port 4

Remote on/off

Yes, 2 pole terminal

Programmable relay

DPST AC rating: 4A up to 240Vac / DC rating: 4A up to 35Vdc, 1A up to 60Vdc

Parallel operation

Yes, but not synchronized

ENCLOSURE

Colour

Blue (RAL 5012)

PV terminals

Tr models: 35 mm² / AWG2

MC4 models: 2 pairs of MC4 connectors 5

Battery terminals

35 mm² / AWG2

Protection category

IP43 (electronic components), IP22 (connection area)

Weight

3kg

Dimensions  h x w x d

Tr models: 185 x 250 x 95mm

MC4 models: 215 x 250 x 95mm

STANDARDS

Safety

EN/IEC 62109-1, UL 1741, CSA C22.2

1a) The solar charger will limit input power if more PV power is connected.

1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V.

2) A higher short circuit current may damage the solar charger in case of reverse polarity connection of the PV array.

3) Equalization is by default disabled.

4) For more information on data communication see the data communication paper in the Technical information section on our website.

5) MC4 models: several splitter pairs may be needed to parallel the strings of solar panels. Maximum current per MC4 connector is 30A. The MC4 connectors are internally parallel connected to a single MPPT tracker.

9.2. Dimension drawings

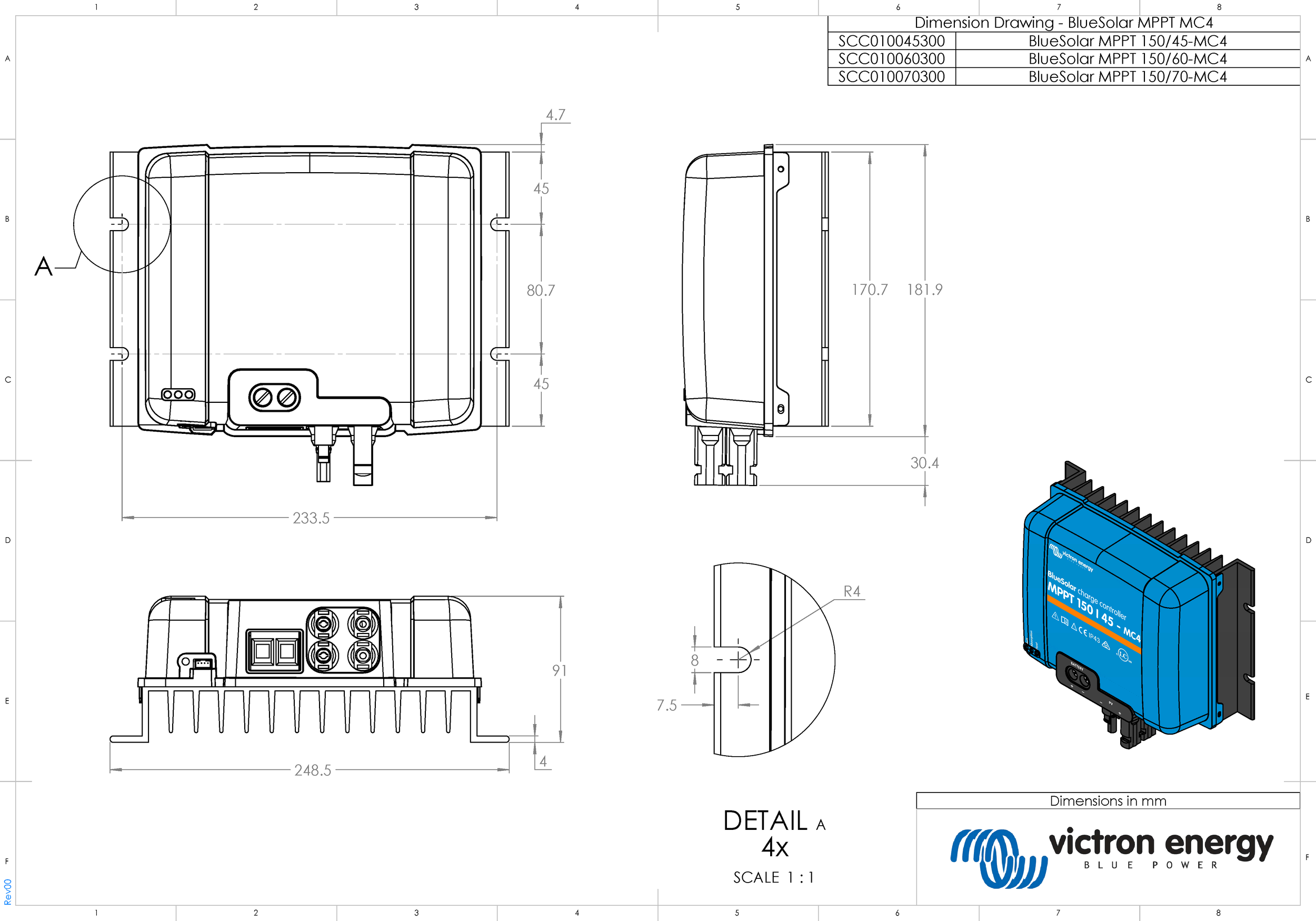

9.2.1. Dimensions 60A-MC4 and 70A-MC4 BlueSolar

BlueSolar-150V-45A-60A-70A-MC4-_dimensions__1_.pdf

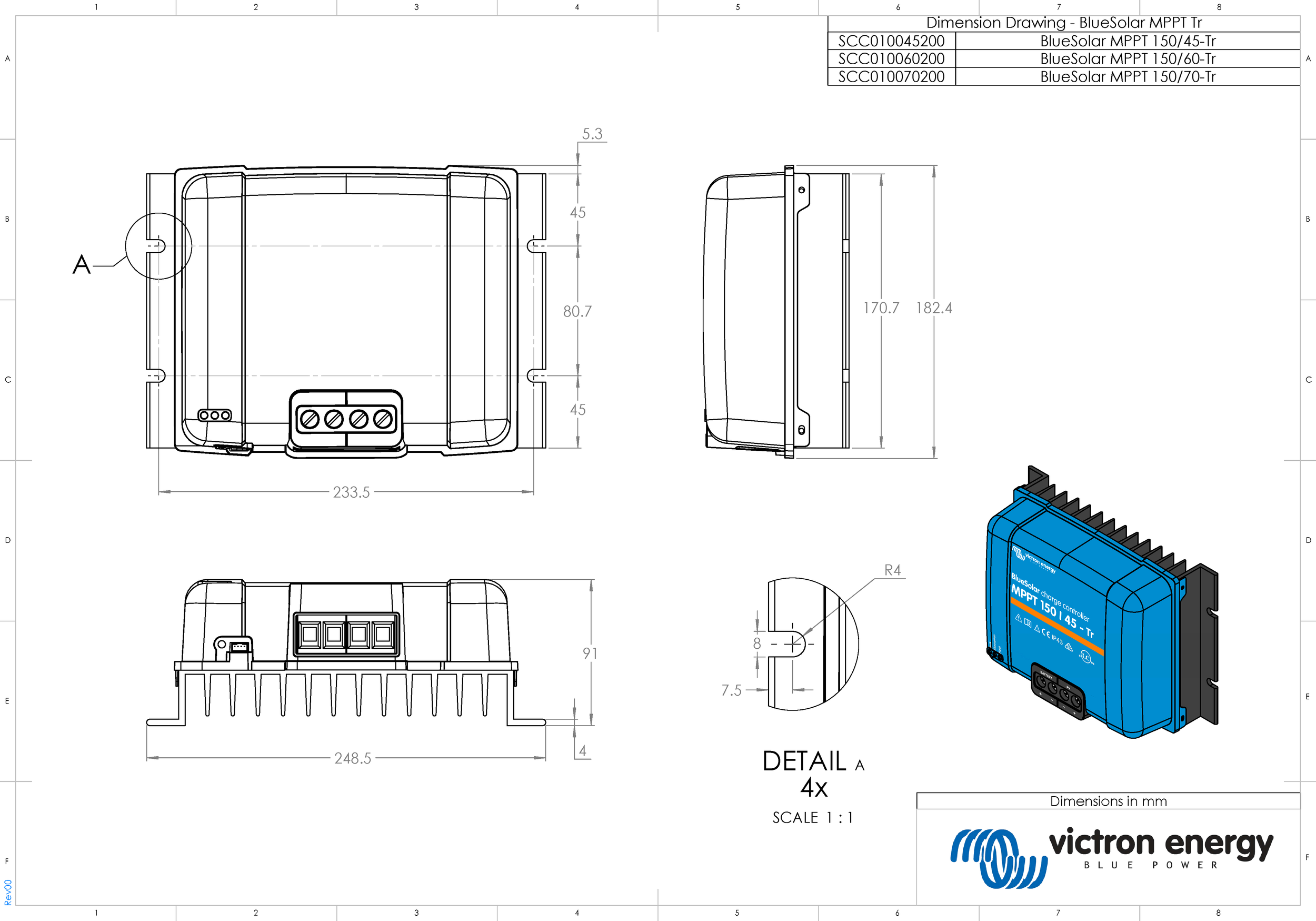

9.2.2. Dimensions 60A-Tr and 70A-Tr BlueSolar

BlueSolar-150V-45A-60A-70A-Tr-_dimensions__1_.pdf
