GX GSM manual

7. Appendix

In this section:

7.1. Accessory / Antennas

7.1.1. Outdoor 2G and 3G GSM Antenna


This antenna can be used with the GX GSM for 2G and 3G bands.

Part number

GSM900100100

Mounting option

Screw mount

Cable type

RG-316

Cable length

3.0 m

Connector

SMA Male straight

Frequencies

800/900/1800/1900/2100 MHz

Signal Gain

3 dBi

7.1.2. Active GPS Antenna


Part number

GSM900200100

Mounting option

Magnet

Cable type

RG-74

Cable length

3.0 m

Connector

SMA Male straight

Frequencies

1575.42 MHz

Impedance

50 Ω

7.2. Notes regarding regional coverage

A good reference to check frequencies is 4G world Coverage Map. Note that the page also contains 2G and 3G information, which is on its GSM World Coverage link on the top.

USA, Mexico, Canada and most of South America: 1900 MHz is the most common frequency for 3G, which is unsupported for this version of GX GSM. Use the GX LTE 4G instead.

Australia: The 900 MHz 3G frequency in remote areas is typically provided by Optus. Telstra's rural 3G network operates at 850 MHz, which is not supported with the current version of GX GSM. Both Telstra and Optus operate 2100 Mhz networks in urban areas, and are supported.

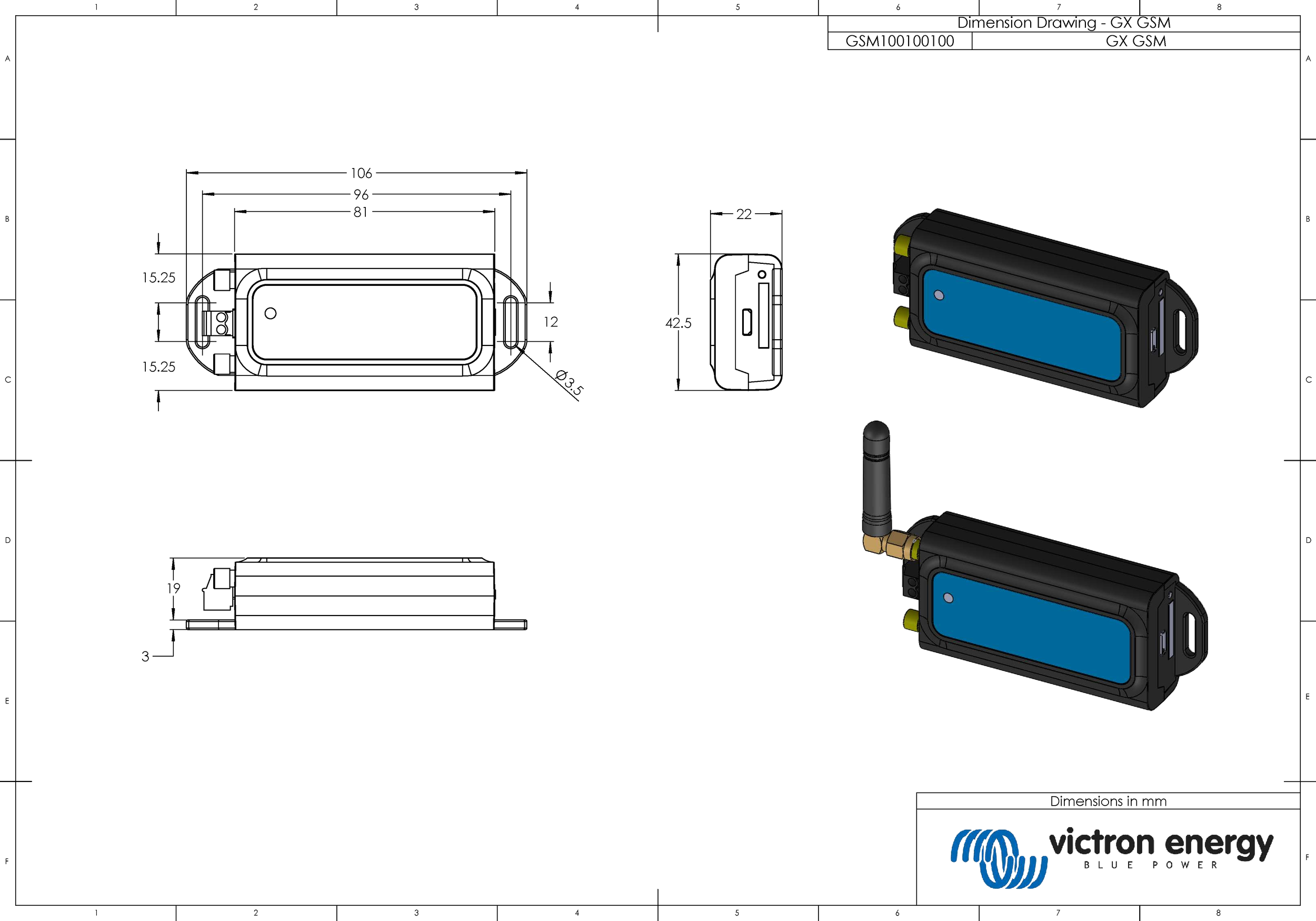

7.3. Dimensions

GX-GSM.pdf
