9. Appendix
In this section:
9.1. Appendix A : Connection Overview
Figure 2. Inverter RS Smart Front
 |
Figure 3. Inverter RS Smart Bottom
 |
Figure 4. User I/O
 |
User I/O Connector is located on bottom left side of connection area, diagram shows 3 perspectives. Left Side - Top - Right Side
Table 3. User I/O Functions - See Installation Section for more details.
Number | Connection | Description |
|---|---|---|
1 | Relay_NO | Programmable relay Normally Open connection |
2 | AUX_IN - | Common negative for programmable auxiliary inputs |
3 | AUX_IN1+ | Programmable auxiliary input 1 positive connection |
4 | AUX_IN2+ | Programmable auxiliary input 2 positive connection |
5 | REMOTE_L | Remote on/off connector Low |
6 | REMOTE_H | Remote on/off connector High |
7 | RELAY_NC | Programmable relay Normally Closed connection |
8 | RELAY_COM | Programmable relay common negative |
9 | TSENSE - | Temperature Sensor negative |
10 | TSENSE + | Temperature Sensor positive |
11 | VSENSE - | Voltage Sensor negative |
12 | VSENSE + | Voltage Sensor positive |
9.2. Appendix B : Block Diagram
9.3. Appendix C : Example Wiring Diagram
9.3.1. 3 phase and Parallel wiring diagram
3 Phase diagram

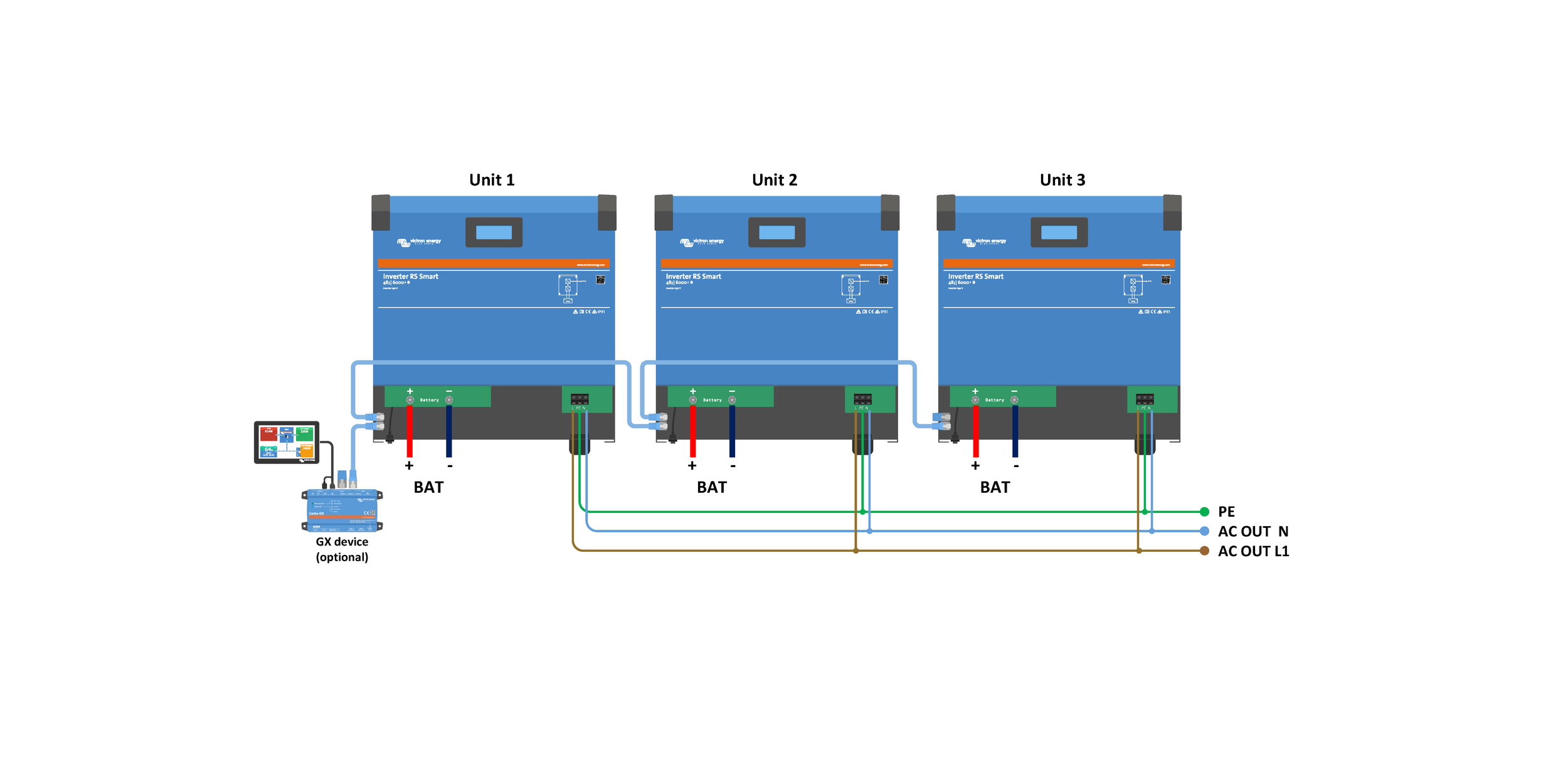

Parallel diagram

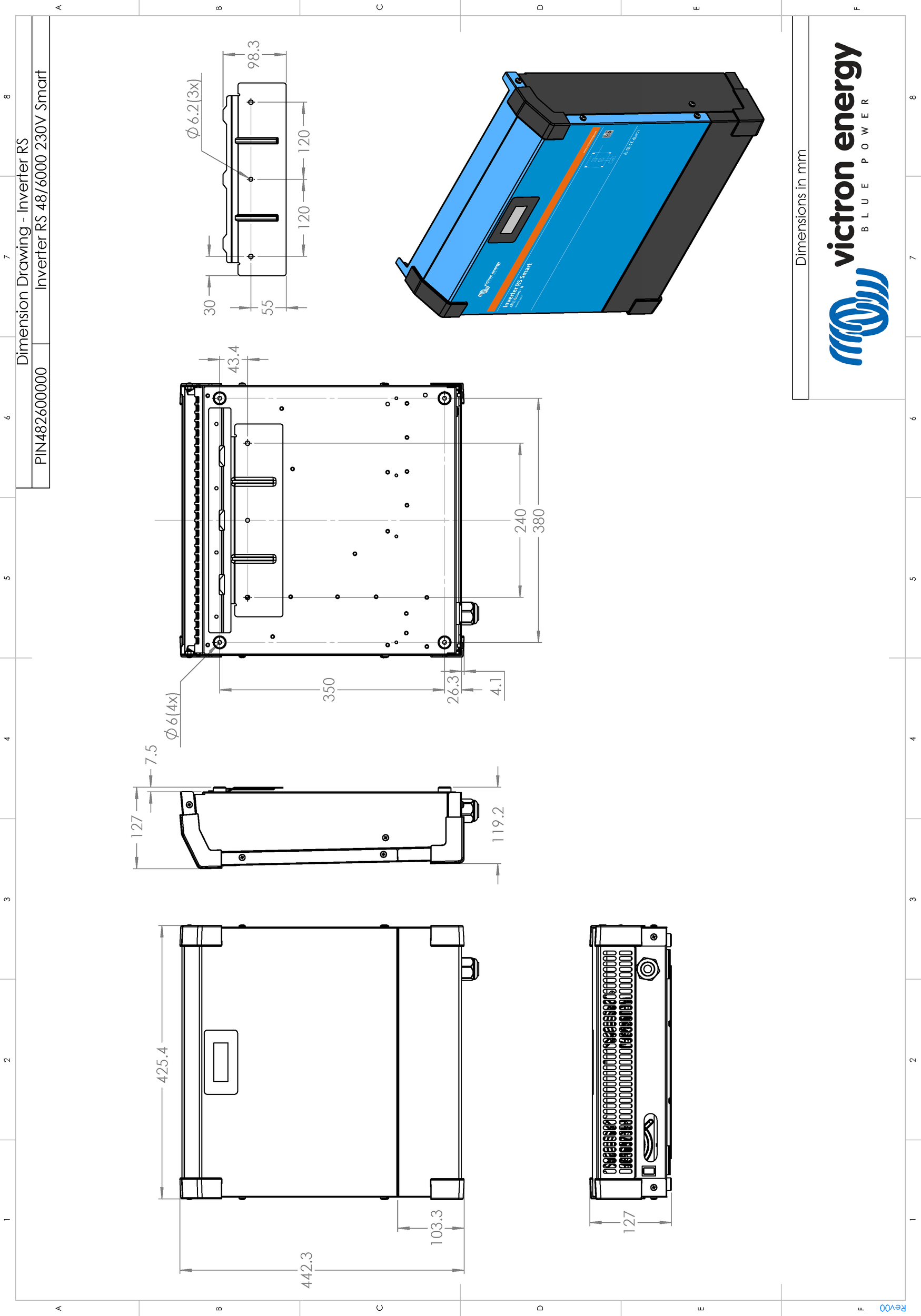

9.4. Appendix D : Dimensions
