MPPT solar charger manual

9. Technical specifications

In this section:

9.1. Specifications 75/10, 75/15, 100/15 and 100/20

MPPT 75/10

MPPT 75/15

MPPT 100/15

MPPT 100/20

Battery voltage (auto select)

12V or 24V

12V, 24V, or 48V

Maximum battery current

10A

15A

15A

20A

Nominal PV power, 12V 1a,b

145W

220W

220 W

290W

Nominal PV power, 24V 1a,b

290W

440W

440 W

580W

Nominal PV power, 48V 1a,b

-

-

-

1160W

Max. PV short circuit current 2

10A

15A

15A

20A

Automatic load disconnect

Yes

Maximum PV open circuit voltage

75V

100V

Peak efficiency

98%

Self consumption

12V: 20mA / 24V: 10mA

12V: 25mA

24V / 48V: 15mA

Charge voltage 'absorption'

14.4V / 28.8V / 57.6V (adjustable)

Charge voltage 'float'

13.8V / 27.6V / 55.2V (adjustable)

Charge voltage 'equalization' 3

16.2V / 32.4V / 64.8V (adjustable)

Charge algorithm

Multi-stage adaptive or user defined algorithm

Temperature compensation

12V: -16mV/°C / 24V: -32mV/°C / 48V: -64 mV/°C

Continuous load current

15A

12V & 24V: 20A

48V: 1A

Low voltage load disconnect

11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or BatteryLife algorithm

Low voltage load reconnect

13.1V / 26.2V / 52.4V or 14V / 28V / 56V or BatteryLife algorithm

Protection

PV reverse polarity, output short circuit, over temperature

Operating temperature

-30°C to +60°C (full rated output up to 40°C)

Humidity

100%, non-condensing

Maximum altitude

5000m (full rated output up to 2000m)

Environmental condition

Indoor type 1, unconditioned

Pollution degree

PD3

Data communication

VE.Direct port 4

ENCLOSURE

Colour

Blue (RAL 5012)

Power terminals

6mm² / AWG10

Protection category

IP43 (electronic components), IP22 (connection area)

Weight

0.5kg

0.6kg

0.65kg

Dimensions (h x w x d)

100 x 113 x 40mm

100 x 113 x 50mm

100 x 131 x 60mm

STANDARDS

Safety

EN/IEC 62109-1 / UL 1741 / CSA C22.2 NO.107.1-16

1a) The solar charger will limit input power if more PV power is connected.

1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V.

2) A higher short circuit current may damage the solar charger in case of reverse polarity connection of the PV array.

3) Equalization is by default disabled.

4) For more information on data communication see the data communication paper in the Technical information section on our website.

9.2. Dimension drawings

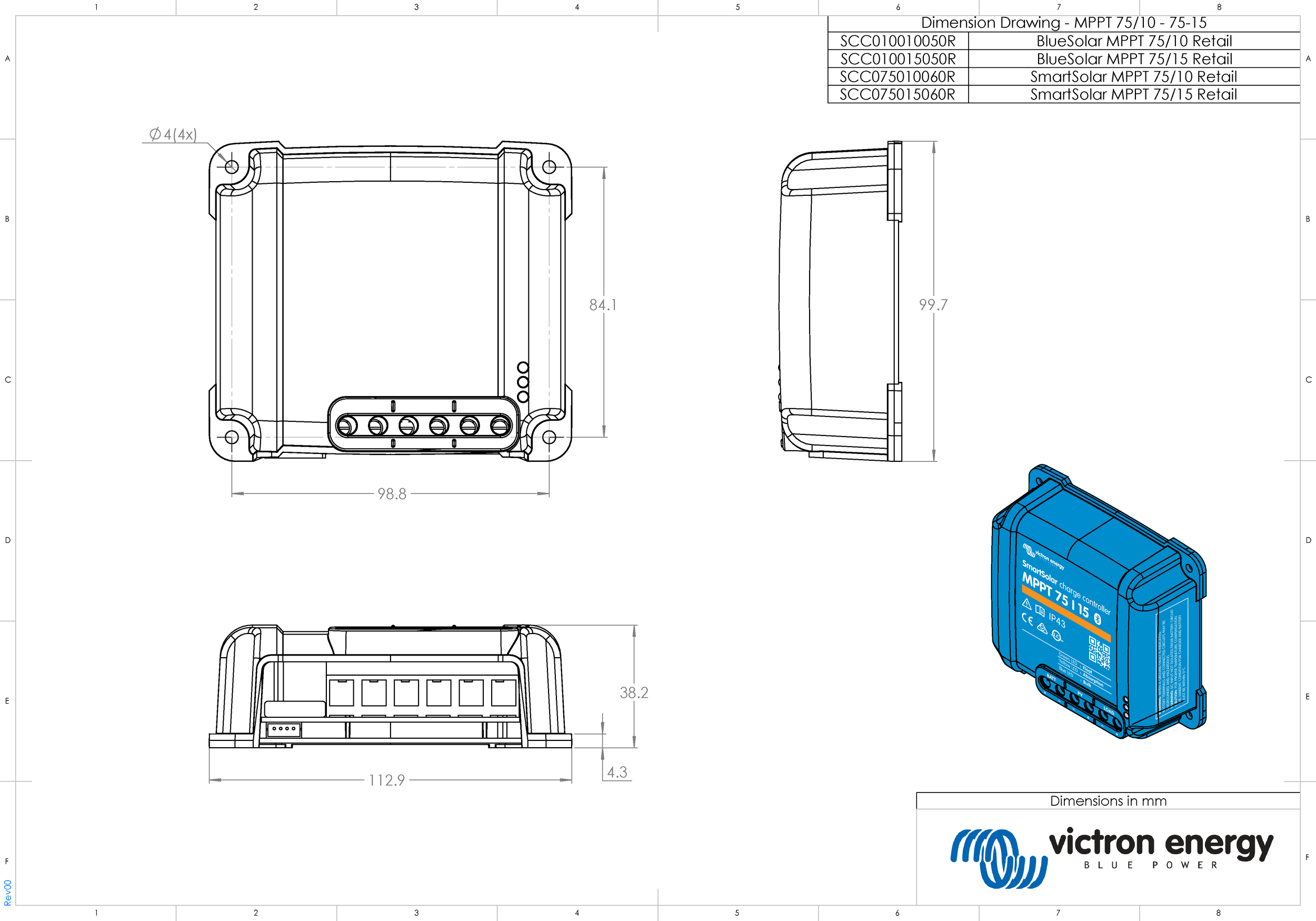

9.2.1. Dimensions 75/10 and 75/15

Blue-Smart-Solar-charge-controller-MPPT-75V-10A-15A-Dimensions.pdf

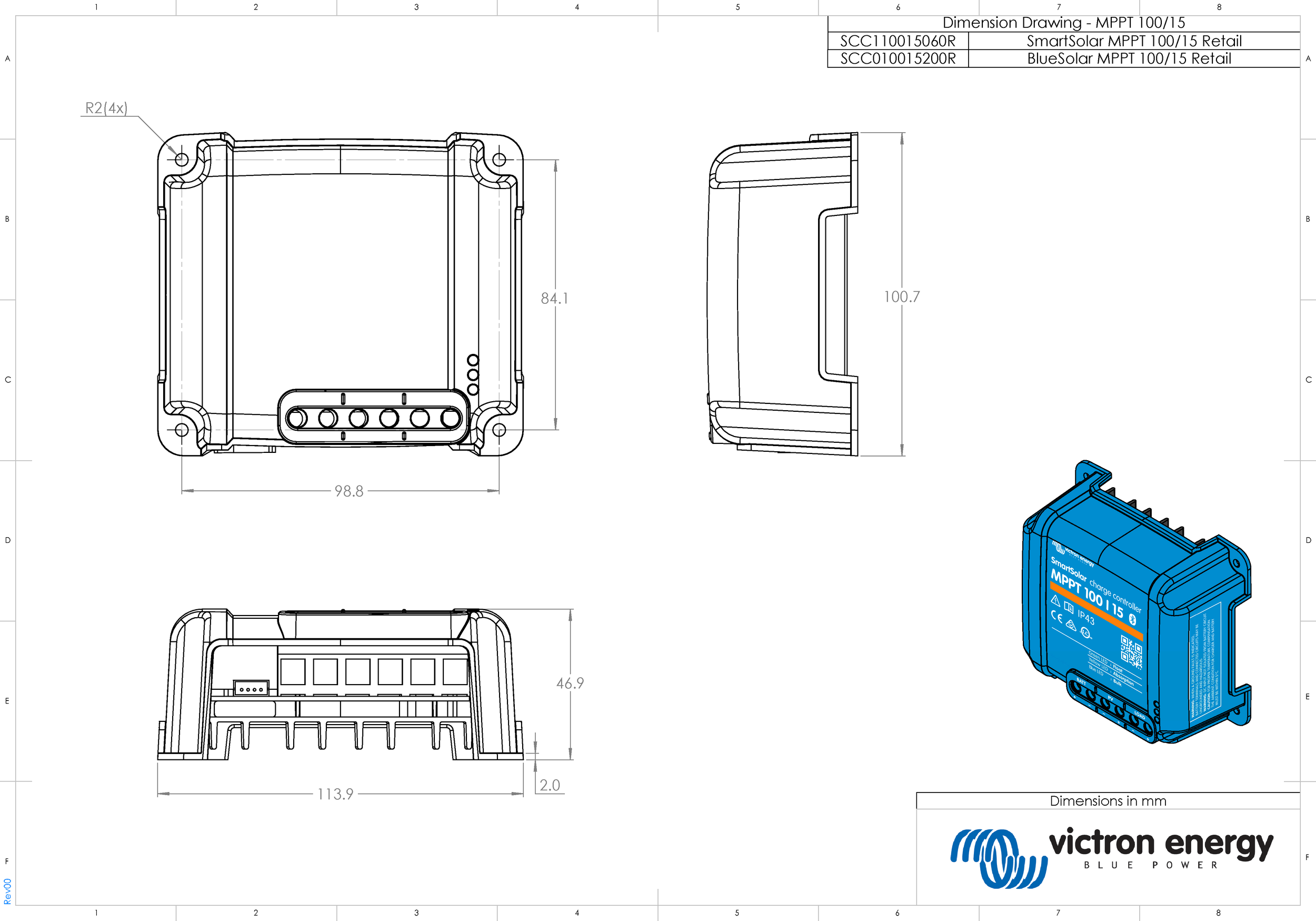

9.2.2. Dimensions 100/15

BlueSolar-_-Smartsolar-MPPT-100-15.pdf

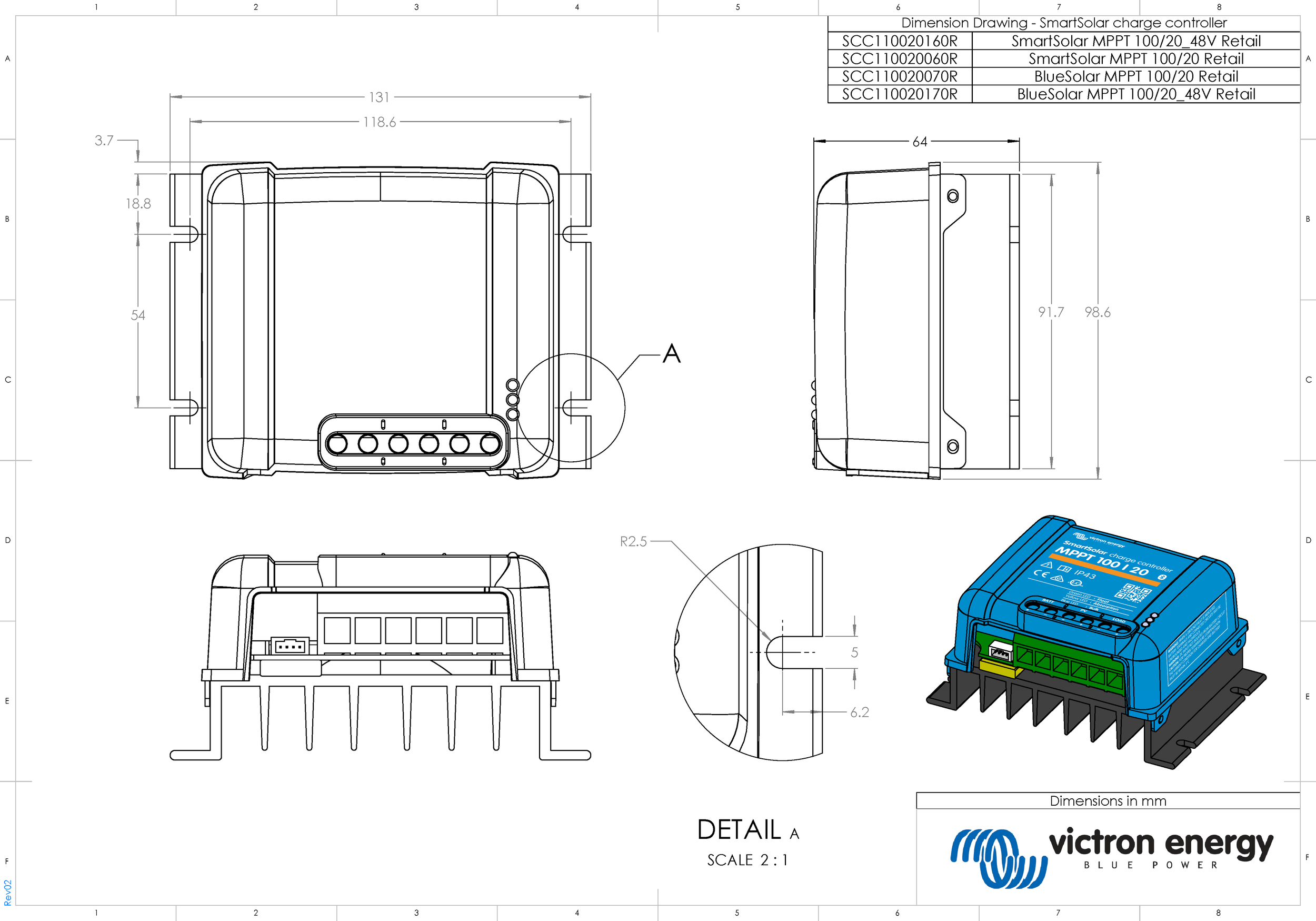

9.2.3. Dimensions 100/20

Dimensions-SmartSolar-MPPT-100V-20A.PDF
