MPPT solar charger manual

9. Technical specifications

In this section:

9.1. Specifications 150/35 and 150/45

MPPT 150/35

MPPT 150/45

Battery voltage

12V / 24V / 48V Auto select, 36V: Manual select

Maximum battery current

35A

45A

Nominal PV power, 12V  1a,b

500W

650W

Nominal PV power, 24V 1a,b

1000W

1300W

Nominal PV power, 36V 1a,b

1500W

1950W

Nominal PV power, 48V  1a,b

2000W

2600W

Max. PV short circuit current   2

35A

45A

Maximum PV open circuit voltage

150V

Peak efficiency

98%

Self-consumption

12V: 20mA / 24V: 15mA / 48V: 10mA

Charge voltage 'absorption'

Default setting: 14.4V / 28.V / 43.2V 57.6V (adjustable)

Charge voltage 'float'

Default setting: 13,8V / 27,6V 14.4V / 55,2V (adjustable)

Charge voltage ‘equalization’ 3)

Default setting: 16.2V / 32.4V / 48.6V / 64.8V (adjustable)

Charge algorithm

Multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm

Temperature compensation

-16mV/°C / -32mV/°C / -64mV/°C

Protection

PV reverse polarity, output short circuit, over-temperature

Operating temperature

-30°C to +60°C (full rated output up to 40°C)

Humidity

95%, non-condensing

Maximum altitude

5000m (full rated output up to 2000m)

Environmental condition

Indoor type 1, unconditioned

Pollution degree

PD2

Data communication

VE.Direct 4

Bluetooth, via the VictronConnect app

ENCLOSURE

Colour

Blue (RAL 5012)

Power terminals

16mm² / AWG6

Protection category

IP43 (electronic components), IP22 (connection area)

Weight

1.25kg

Dimensions  h x w x d

130 x 186 x 70 mm

STANDARDS

Safety

EN/IEC 62109-1/ UL 1741 / CSA C22.2 NO.107.1-16

1a) The solar charger will limit input power if more PV power is connected.

1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V.

2) A higher short circuit current may damage the solar charger in case of reverse polarity connection of the PV array.

3) Equalization is by default disabled.

4) For more information on data communication see the data communication paper in the Technical information section on our website.

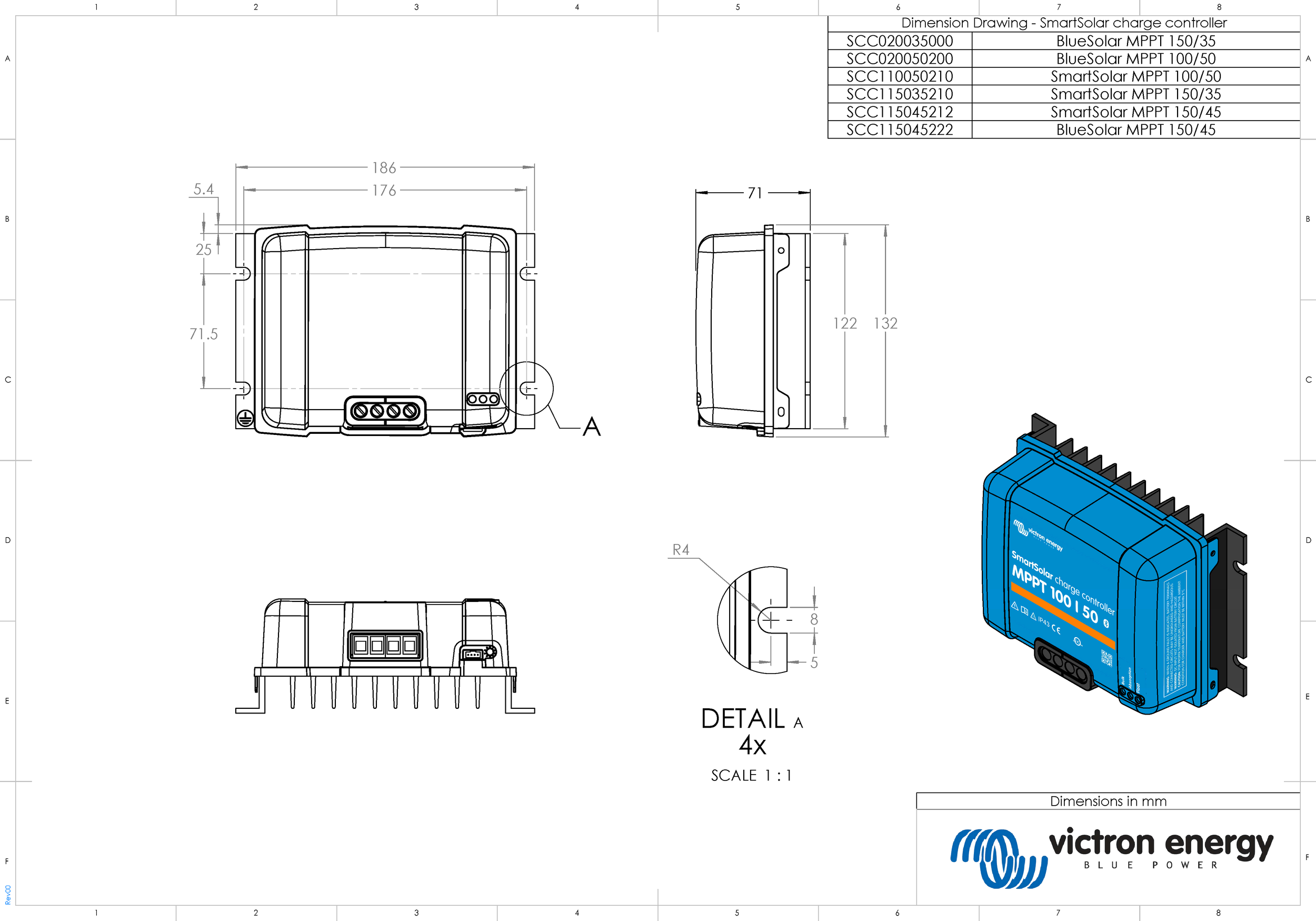

9.2. Dimension drawings

9.2.1. Dimensions 100/35 and 150/45

BS-SS-MPPT-100-50-150-35-150-45.pdf
