Victron VM-3P75CT Energy Meter Manual

VOLTAGE INPUTS

Voltage connection

Direct

Input voltage range L-N

85 to 265VAC

Input voltage range L-L

150 to 460VAC

Frequency

50/60Hz

CURRENT INPUTS

Current connection

Via current transformers (included - wire length 640mm (25.2in)

Rated current

75A

COMMUNICATION

VE.Can communication port

Two RJ45 connectors (VE.Can terminators included)

Ethernet communication port

One RJ45 connector, Modbus UDP

Refresh rate

100ms

POWER SUPPLY

Type

Self-power supply via L1-N

Switch or circuit breaker

Required as means of a disconnecting device - not included

External fuse ^[1]

Required in the neutral conductor - 500mA, not included

Consumption

1.45W / 3.1VA

Frequency

50/60Hz

ENCLOSURE

Material & colour

Polycarbonate, blue (RAL5012)

Voltage connection

Screw terminals 0.25 - 1.5mm² (24 - 16AWG)

Current transformer connection

Pluggable screw terminals (included)

Protection category

IP20

Weight

370g (including packaging)

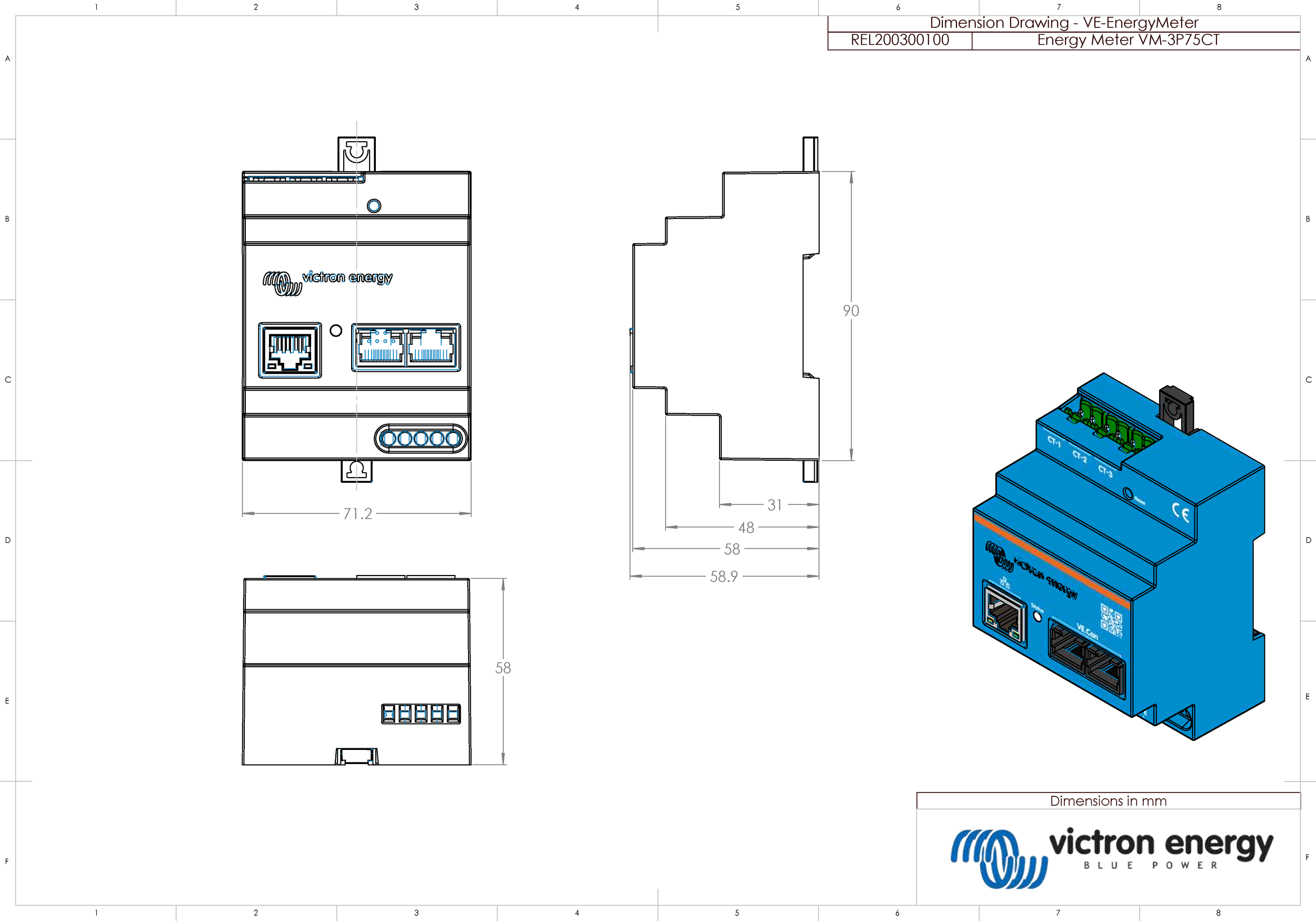

Dimensions

90 x 71 x 59mm (3.5 x 2.8 x 2.3in)

ENVIRONMENTAL

Indoor/outdoor usage

Indoor only

Operating temperature

From -10 to +55 °C

Storage temperature

From -20 to +70 °C

Relative humidity

< 90% non-condensing

Altitude

2000m (6562ft)

Mains supply voltage fluctuations

±0.1Vin

Overvoltage category

Cat. III

Pollution degree

2

STANDARDS

Safety

EN-IEC 61010-1

^[1] Can be omitted if a circuit breaker with a fuse rating of 500mA is used as the isolating device.
