7. Appendix

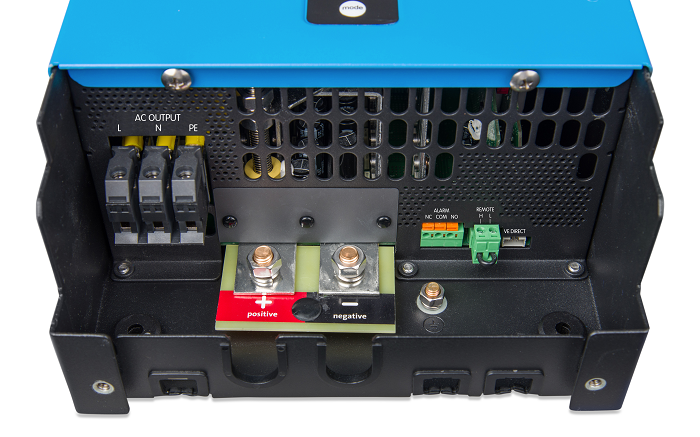

7.1. Connection overview
![image_not_available.svg](image/16618d3fbefaf1.png)
Connections 1600VA model
![Phoenix_Inverter_12V_2000VA_Smart__connections_.png](image/16618d3fc22a3b.png)
Connections 2000VA model

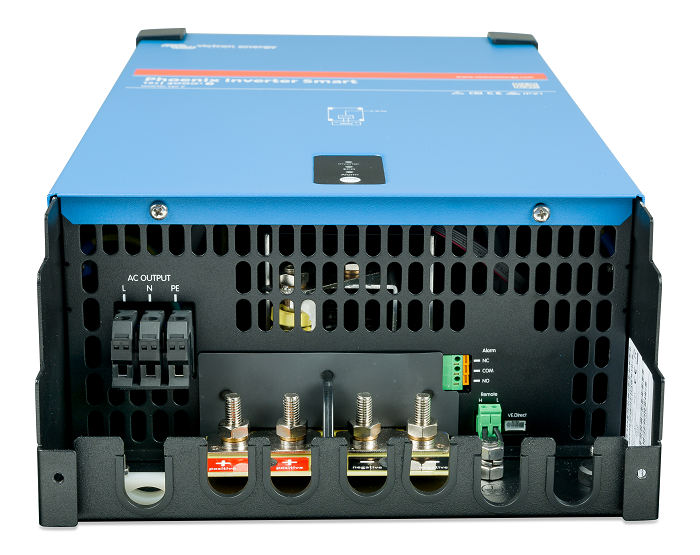

![Phoenix_inverter_Smart_12-3000VA-13__conn_.png](image/16618d3fc4d903.png)
Connections 3000VA model

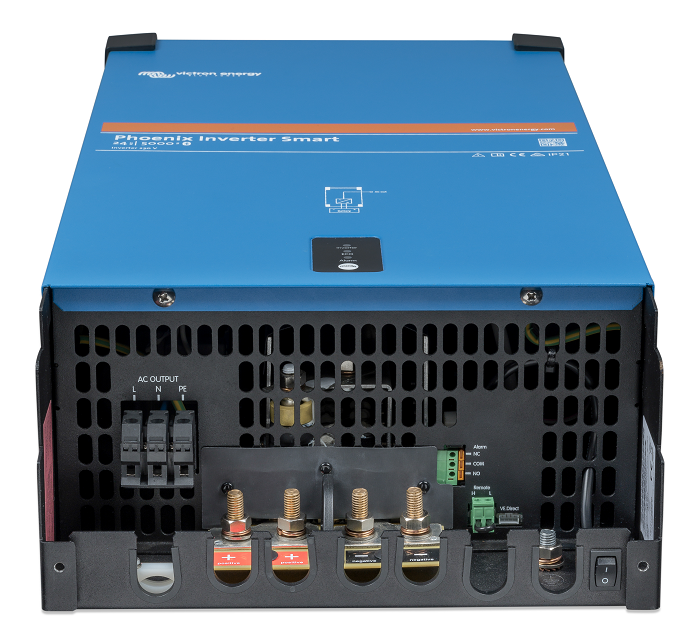

![Phoenix_Inverter_Smart_24V_5000VA__bottom_conn_.png](image/16618d3fc7b208.png)
Connections 5000VA model
# | Connector | Terminal names |
---|---|---|
A | AC output | L (phase), N (neutral), PE (earth) |
B | Battery | + (positve), - (negative) |
C | Alarm (programmable relay) | NO, COM, NC |
D | Remote | H, L |
E | VE.Direct | VE.Direct |

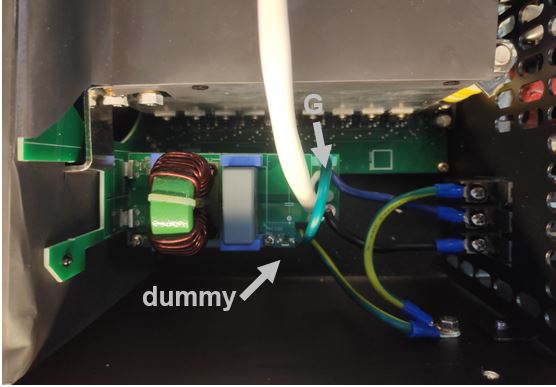

7.2. Installation information floating ground 1600VA and 2000VA models
Ground wire “G“ connects the output neutral to ground. It must be re-positioned to a "dummy" terminal if a floating output is required.
When a floating output is obtained, the current reading at no load can show an offset of around 100 - 50mA. Also beware that a GFCI (or RCCB) will not function properly.
![Install_info_1600VA_2000VA.png](image/16618d3fd022f8.png)

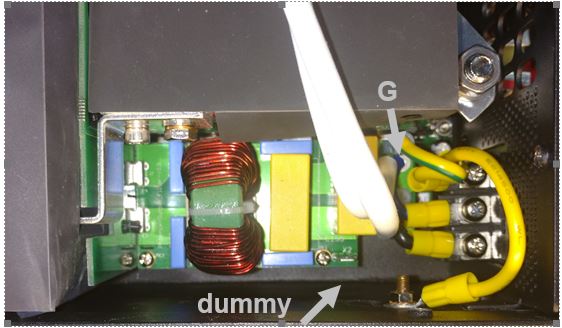

7.3. Installation information floating ground 3000VA and 5000VA models
Ground wire “G“ connects the output neutral to ground. It must be re-positioned to a ‘dummy’ terminal if a floating output is required.
When a floating output is obtained, the current reading at no load can show an offset of around 100 - 150mA. Also beware that a GFCI (or RCCB) will not function properly.
![Install_info_3000VA_000VA.png](image/16618d3fd0d315.png)

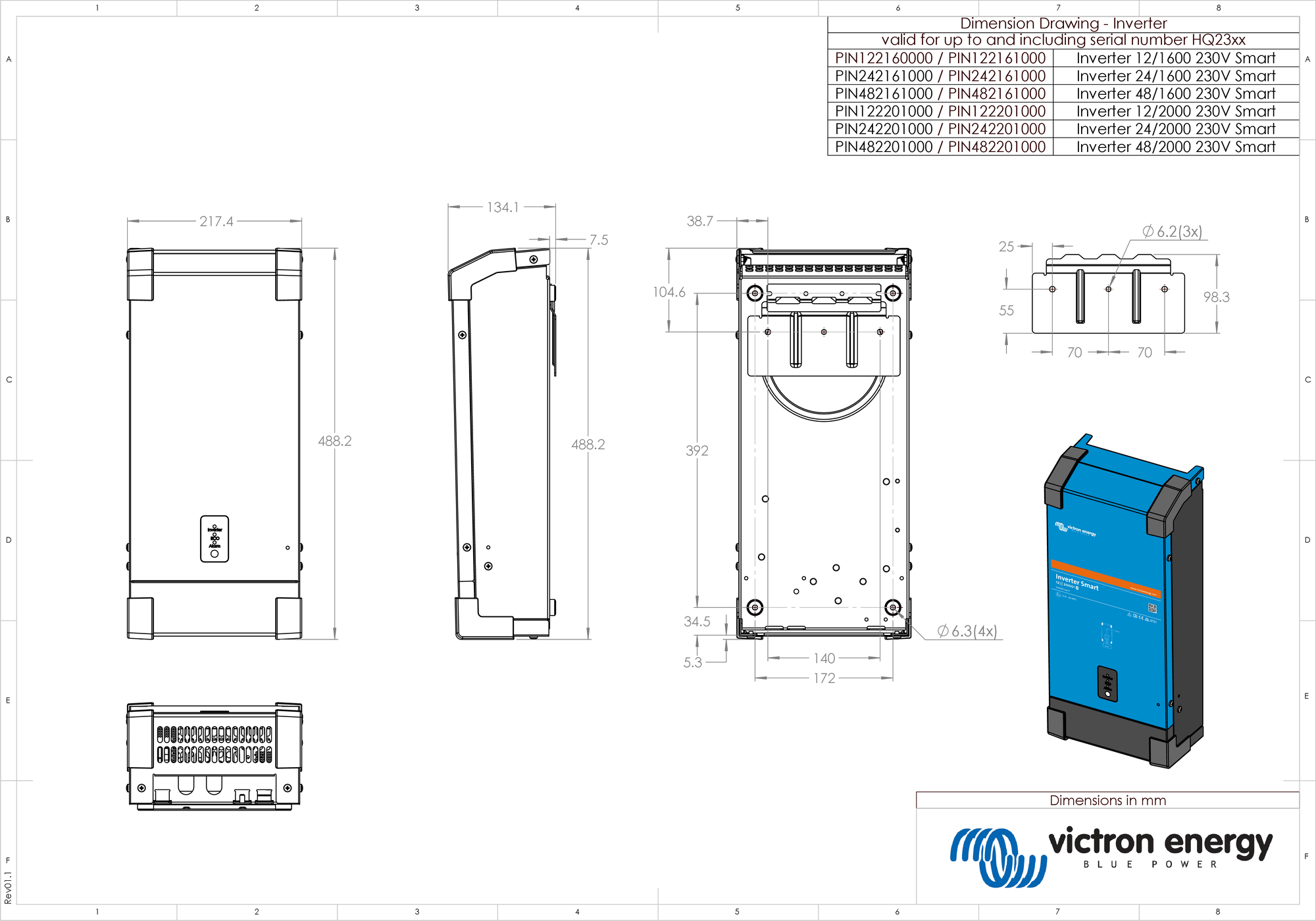

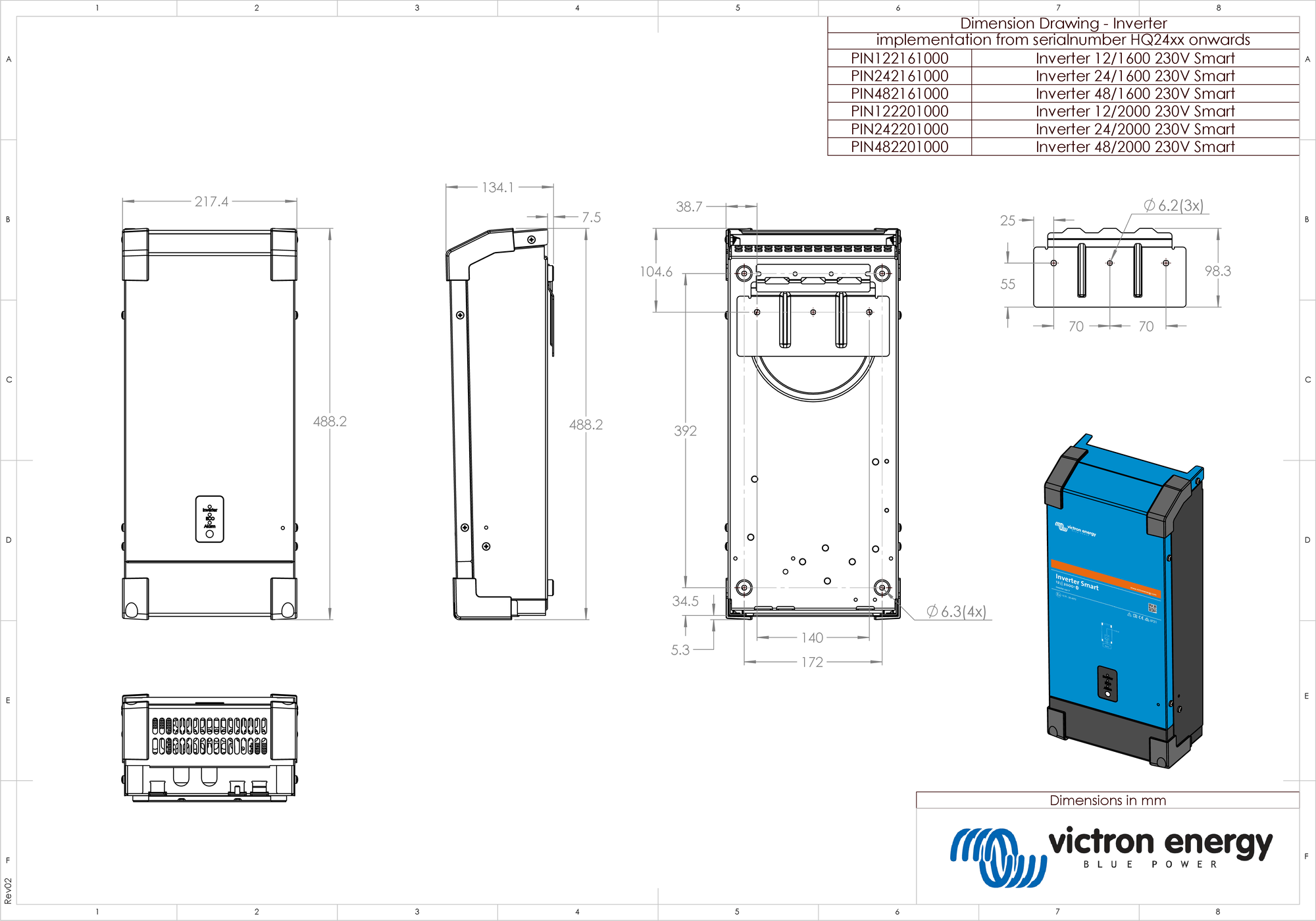

7.4. Dimensions 1600VA and 2000VA model
![Inverter_Smart_1600VA___2000VA_onwards_SN_HQ24xx.pdf](image/16618d3fd98449.png)
![Inverter_Smart_1600VA___2000VA_till_and_included_SN_HQ23xx.pdf](image/16618d3fda0abd.png)

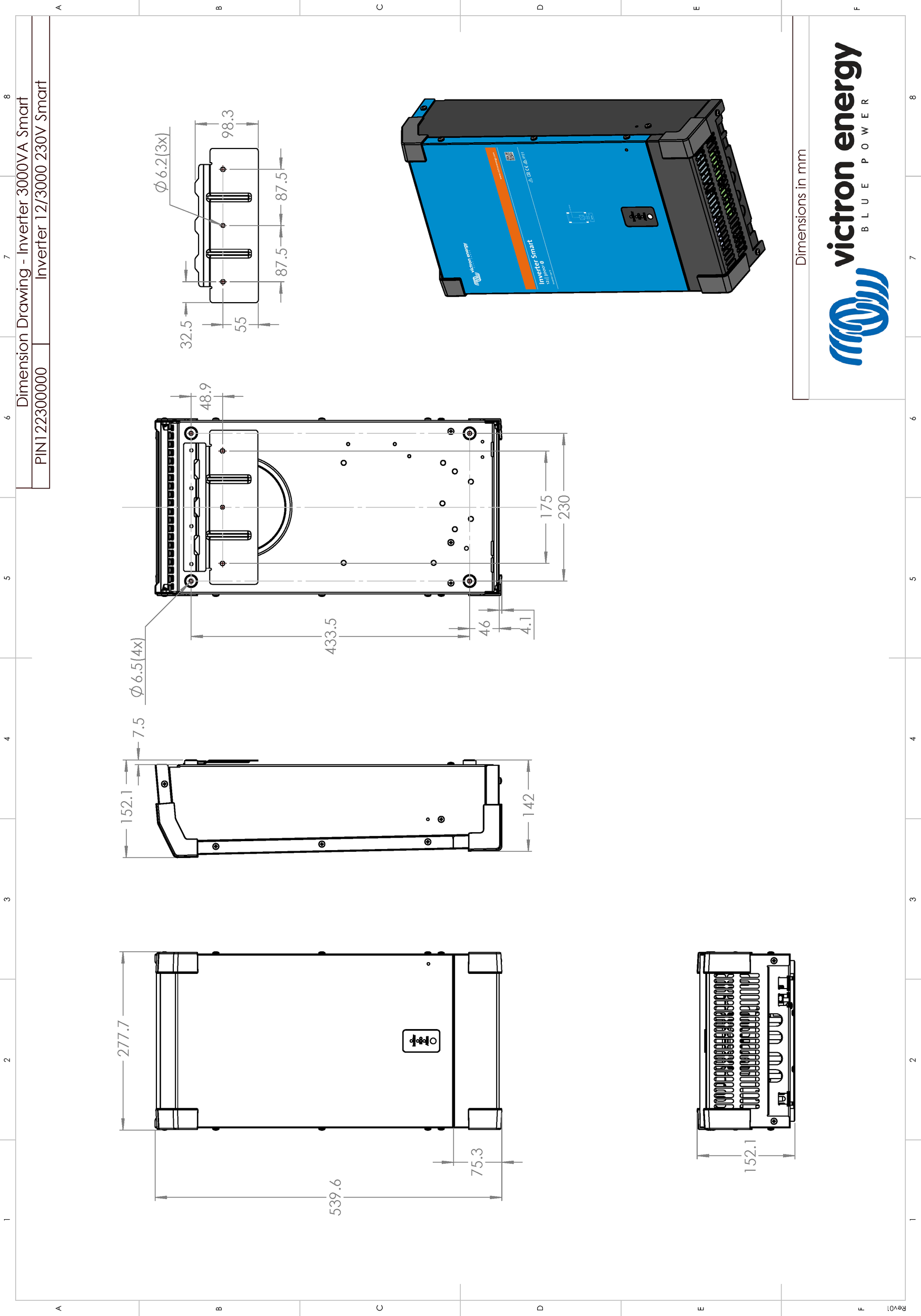

7.5. Dimensions 3000VA model (12V)
![Phoenix_Inverter_12V_3000VA_Smart.pdf](image/16618d3fdab959.png)

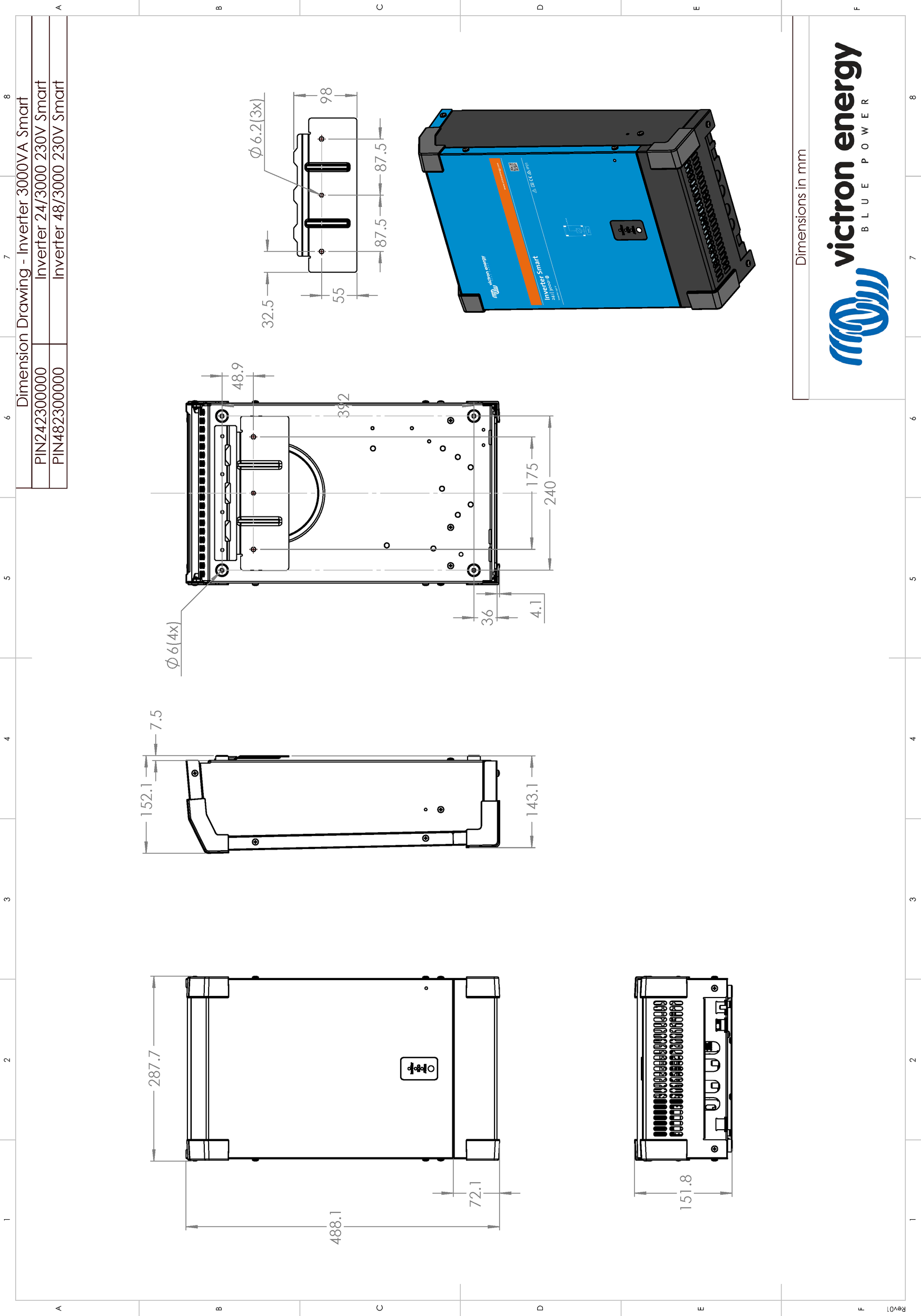

7.6. Dimensions 3000VA model (24V, 48V)
![Phoenix_Inverter_24V-48V_3000VA_Smart.pdf](image/16618d3fdcd6fc.png)

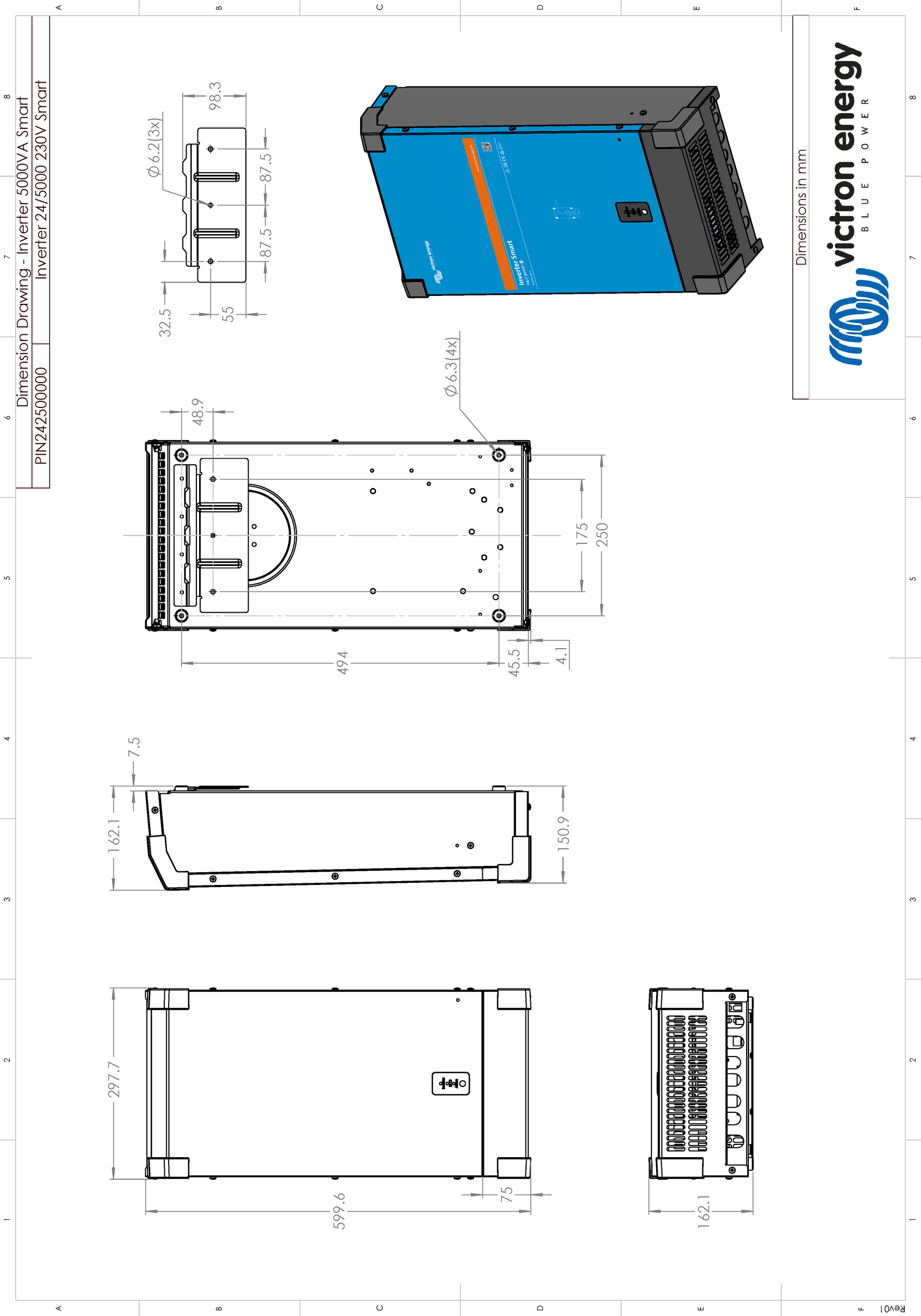

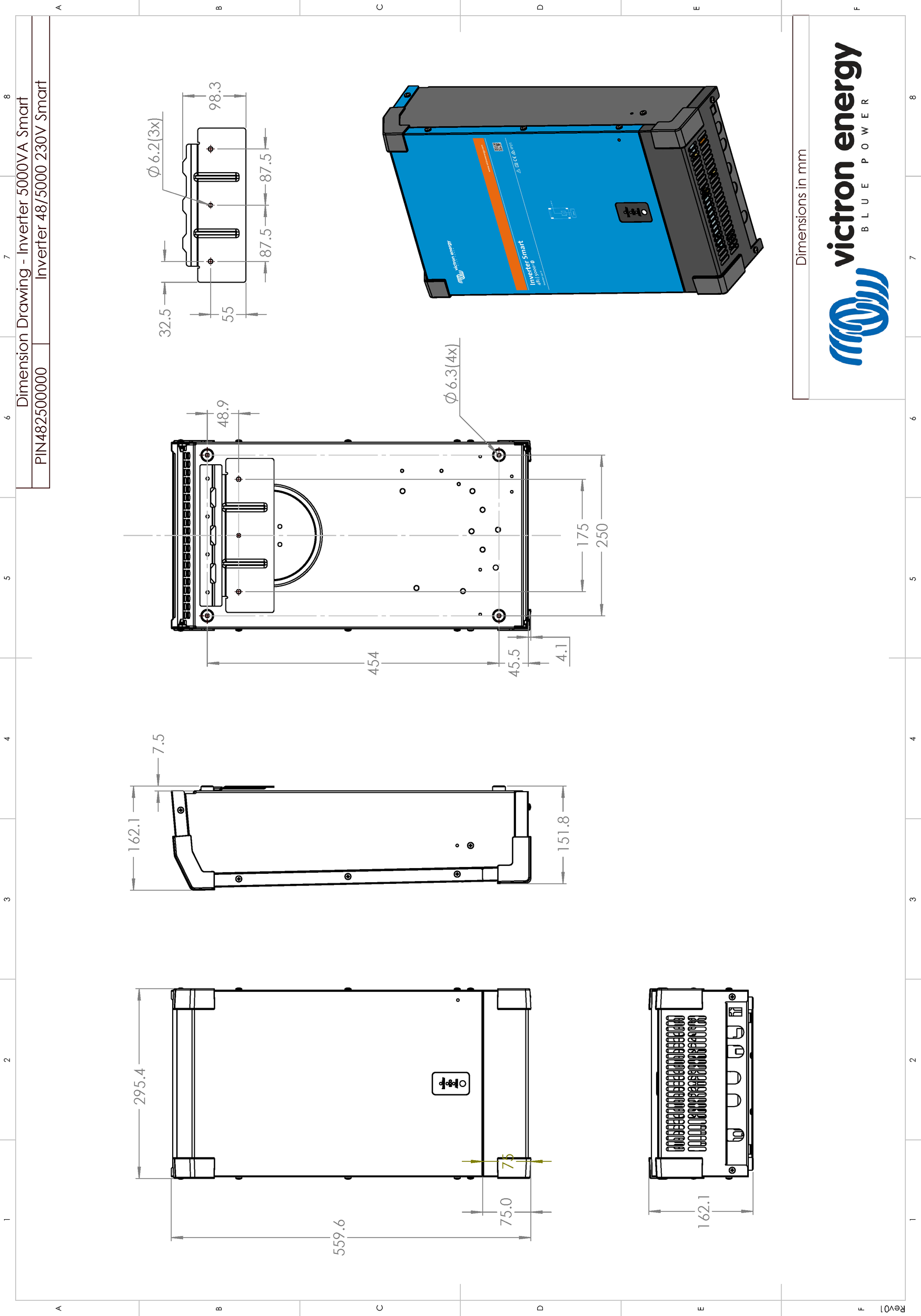

7.7. Dimensions 5000VA model
![Phoenix_Inverter_24V-48V_5000VA_Smart.pdf](image/16618d3fe27c20.png)
![Inverter_Smart_48V_5000VA__zonder_Phoenix.pdf](image/16618d3fe49075.png)
