Orion XS 12/12-50A DC-DC battery charger | |
|---|---|
Input voltage range | 9-17V |
Output voltage adjust range | 10-17V |
Output voltage tolerance | +/- 0.25% (max) |
Output voltage noise | 10mV rms |
Input and output current setting range | 1 - 50A |
Maximum constant short-circuit current | 50A |
Continuous output power up to 40 °C 1) | 700W 4) |
Maximum efficiency | 98.5% |
No-load current consumption | < 100mA |
Standby current consumption | < 1.5mA |
Can be used as power supply | Yes, output voltage can be set with VictronConnect App |
Communication ports | |
VictronConnect App / Bluetooth Smart | Yes |
Bluetooth power and frequency | +4dBm | 2402 - 2480 MHz |
VE.Smart Networking | Yes 2) |
VE.Direct | Yes (including DVCC) 3) |
Other | |
Operating temperature range | -20 to +60 °C (derating 1.5% per °C above 40 °C) |
Humidity | 95 % non-condensing |
Maximum altitude | 2000 m |
Pollution degree | PD2 |
Overvoltage category | OVC 1 |
Protection category | IP65 |
DC connection | Screw terminals |
Maximum cable cross-section | 4AWG (21.2mm2) |
Weight | 0.330kg (0.73 lb) |

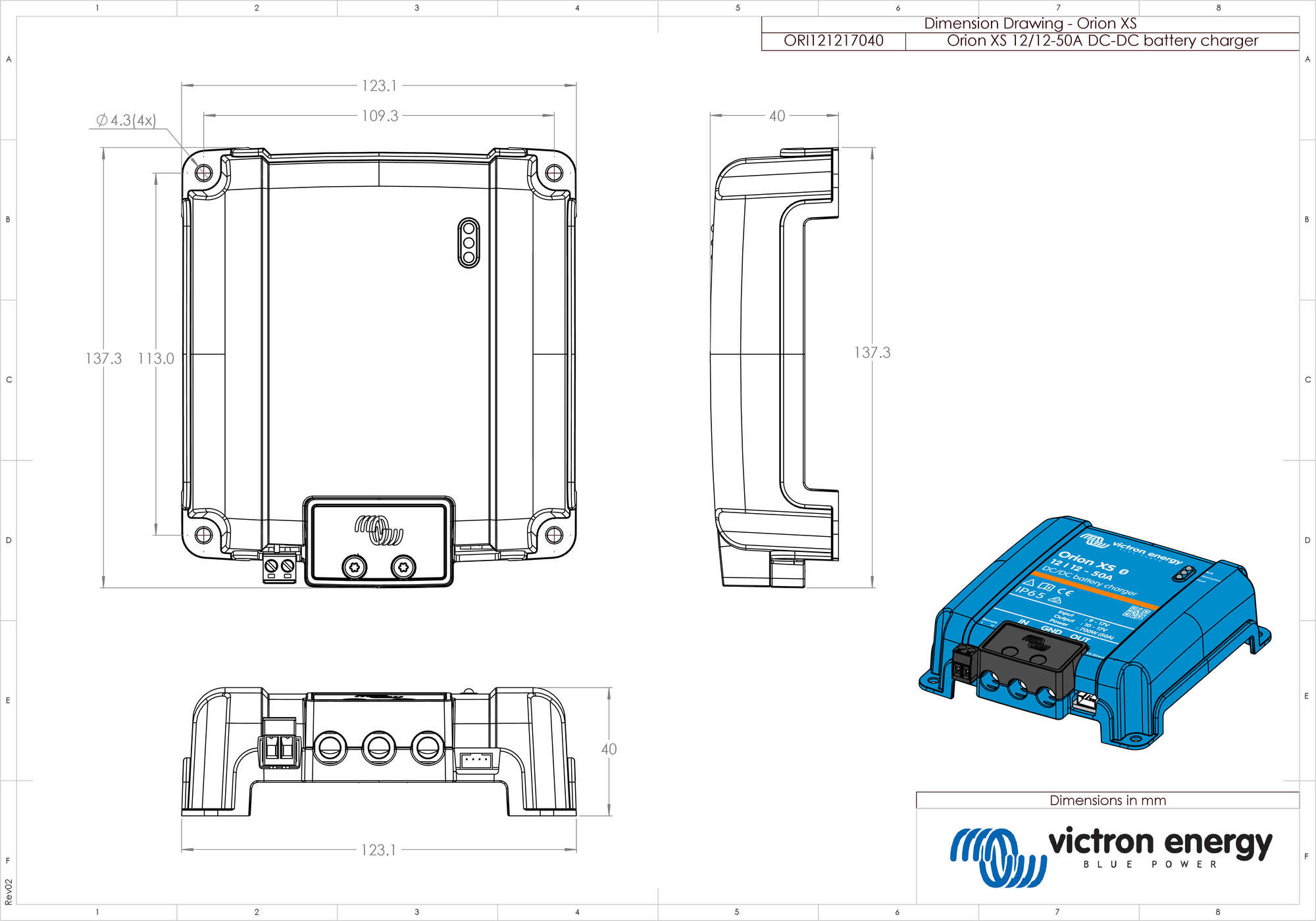

Dimensions h x w x d | 137.3 x 123.1 x 40mm (5.4 x 4.85 x 1.6 inch) |
Standards | |
Safety | IEC 62477-1 |
EMC | EN 300 328, EN 301 489-1, EN 301 489-17, FCC 15B, ICES-003 |
Automotive Directive | ECE R10-6 |
1) This applies to optimal cooling where the product is mounted as indicated in the manual with sufficient free space. In case of limited cooling, e.g. due to insufficient airflow, the charging current will be regulated back sooner. With an improved airflow (e.g. forced airflow), derating will take place far above tamb 40°C. 2) VE.Smart Networking features will be receiving Vsense, Tsense and Isense data from the wireless network, for example from a SmartShunt, BMV or Smart Battery Sense. Synchronised charging is not supported. 3) DVCC compatibility requires Orion XS firmware v1.03 or later and Venus OS firmware v3.20 or later on the GX device. 4) This value represents the nominal power level at a typical voltage of 14V. Power is calculated as the product of the applied voltage and current (P = V × I). Examples: 12V × 50A = 600W, 14V × 50A = 700W | |
Orion XS 12/12-50A DC-DC battery charger and Orion XS 1400 DC-DC battery charger EU & UK Compliance
SIMPLIFIED EU DECLARATION OF CONFORMITY: Hereby, Victron Energy B.V. declares that the Orion XS 12/12-50A DC-DC battery charger is in compliance with Directive 2014/53/EU and S.I. 2017/1206. The full text of the EU & UK declaration of conformity is available at the following internet address: https://ve3.nl/7r.
UK PSTI STATEMENT OF COMPLIANCE: We, Victron Energy B.V., confirm that our product Orion XS 12/12-50A DC-DC battery charger complies with the security requirements outlined in Schedule 1 of The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023. The official Statement of Compliance can be downloaded from https://ve3.nl/7r.
Orion XS 12/12-50A DC-DC battery charger and Orion XS 1400 DC-DC battery charger FCC and Industry Canada Compliance
This device complies with part 15 of the FCC Rules and to RSS of Industry Canada. Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Caution
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de Classe B est conforme à la norme Canadienne ICES-003.
This device contains a transmitter with FCC ID: SH6MDBT42Q.
This device contains a transmitter with IC: 8017A-MDBT42Q.
To comply with FCC and Industry Canada RF radiation exposure limits for general population, the antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20cm is maintained between the radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter.
