7. Technical specification
EV Charging Station | |
|---|---|
Input voltage range (V AC) | 170 – 265VAC 50Hz |
Rated charge current | 32A / phase |
Nominal power | 22kW |
Current output range | 6 – 32A |
Wi-Fi standards | 802.11 b/g/n (2.4Ghz only) |
Self-consumption | 15mA@230V |
Configurable Max. Current | 10-32A |
Configurable Min. Current | 6A up to 1A below max. value |
Connector type | IEC 62196 Type 2 |
GENERAL | |
Means to Disconnect | Depending on available input power and cable cross-section - max 40A |
Configurable price/kWh calculator (EUR) | Default setting: 0.13 (adjustable) |
Control type | Touch Screen, Web page, GX device over Modbus TCP, VictronConnect via Bluetooth |
Light Ring | 55 configurable light effects available |
Protection | External RCD is required |
Operating temperature | -25°C to +50°C |
Storage temperature | -40 °C to +80 °C |
Humidity | 95%, non-condensing |
Data communication | ModbusTCP over WiFi, Bluetooth |
ENCLOSURE | |
Enclosure colour | Light Blue (RAL 5012) |
Power terminals | 6-10 mm² / AWG 10-8 |
Protection category | IP44 |
Ventilation | not required |
Weight | 3 kg |
Dimensions (h x w x d) | 377 x 307 x 148mm |
STANDARDS | |
Safety | IEC 61851-1, IEC 61851-22 Detection for Relay Contact welded Detection for missing protective conductor Detection for missing Ground Detection for shorted CP |

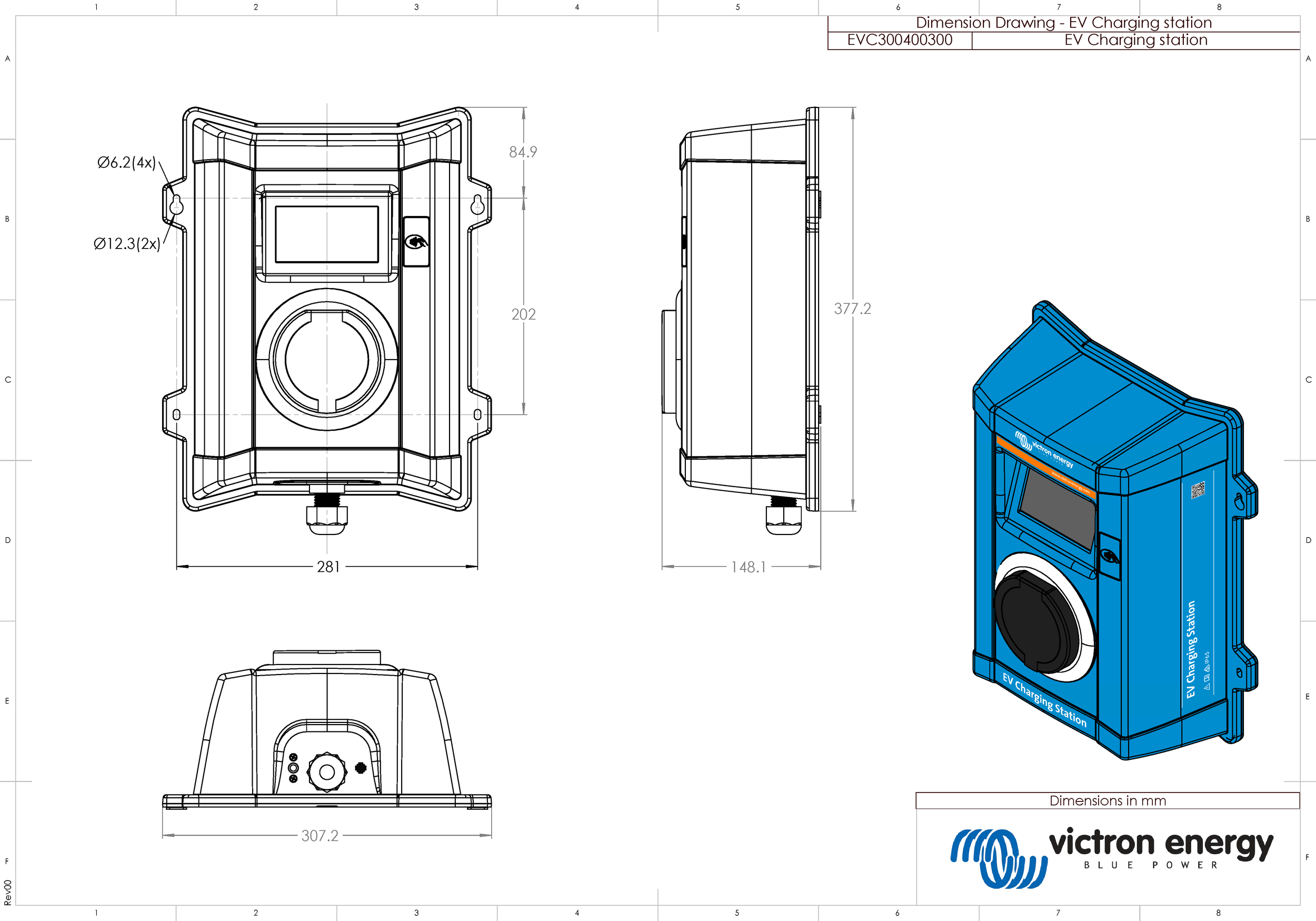

7.1. Dimensions
