8. Appendix
8.1. Appendix A : Connection Overview
![Multi RS Solar Front](image/164bf7667a82da.png)
![Multi RS Solar Bottom](image/164bf7666ad58b.png)

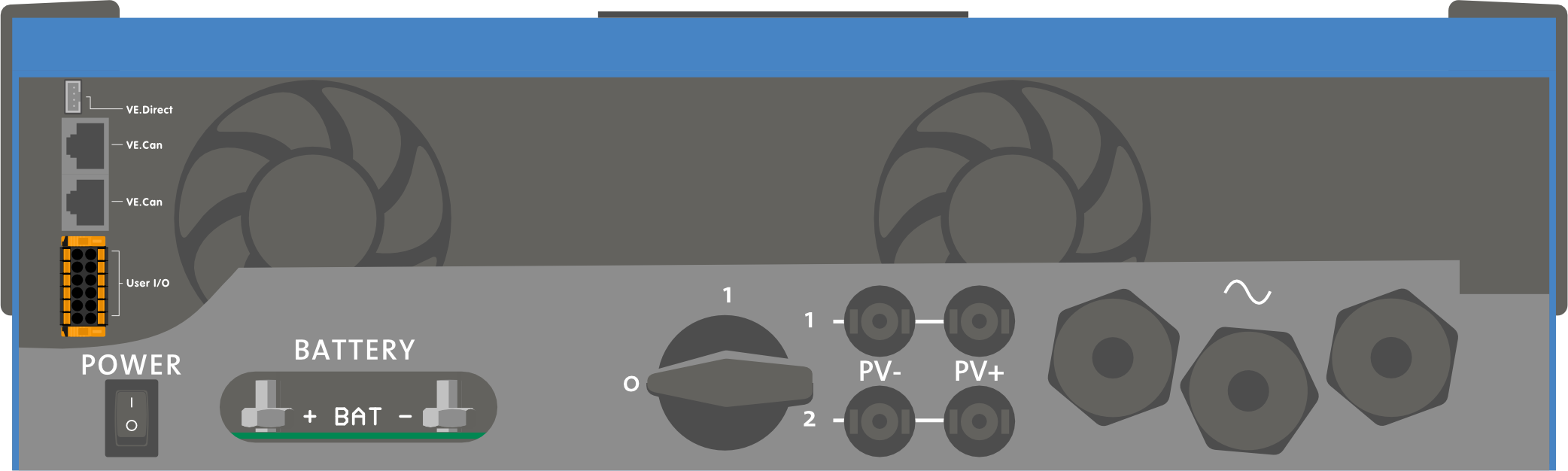

User I/O Connector is located on bottom left side of connection area, diagram shows 3 perspectives. Left Side - Top - Right Side
Number | Connection | Description |
---|---|---|
1 | Relay_NO | Programmable relay Normally Open connection |
2 | AUX_IN - | Common negative for programmable auxiliary inputs |
3 | AUX_IN1+ | Programmable auxiliary input 1 positive connection |
4 | AUX_IN2+ | Programmable auxiliary input 2 positive connection |
5 | REMOTE_L | Remote on/off connector Low |
6 | REMOTE_H | Remote on/off connector High |
7 | RELAY_NC | Programmable relay Normally Closed connection |
8 | RELAY_COM | Programmable relay common negative |
9 | TSENSE - | Temperature Sensor negative |
10 | TSENSE + | Temperature Sensor positive |
11 | VSENSE - | Voltage Sensor negative |
12 | VSENSE + | Voltage Sensor positive |

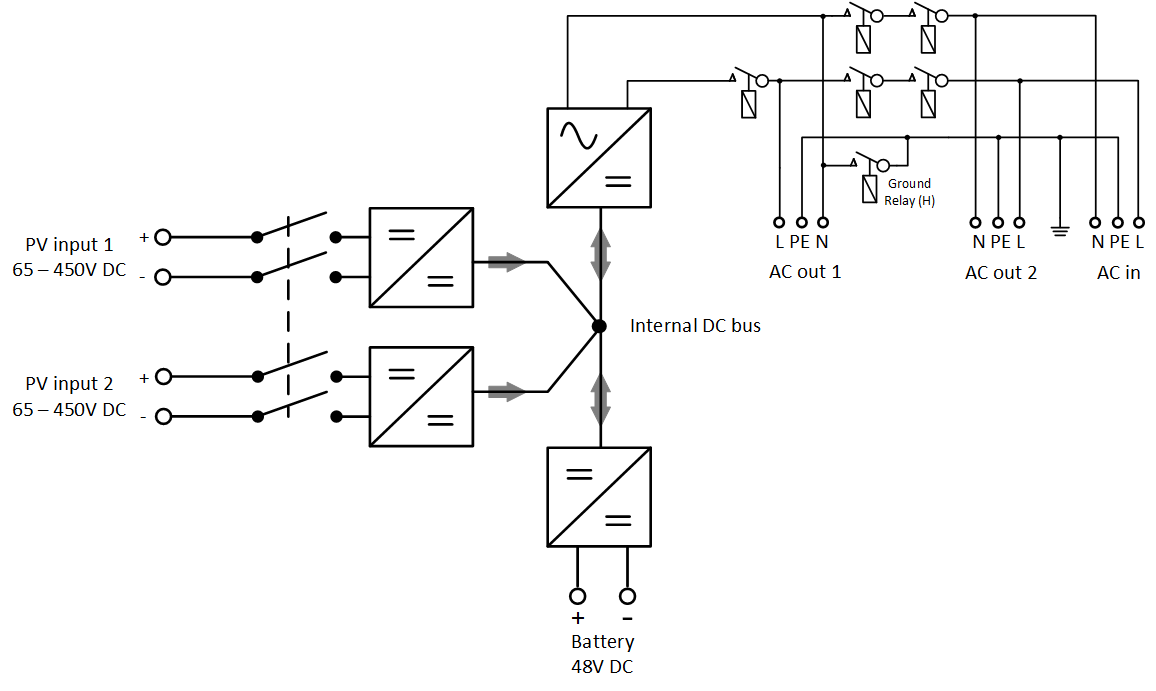

8.2. Appendix B : Block Diagram
![Multi RS Solar](image/164bf7667b565e.png)

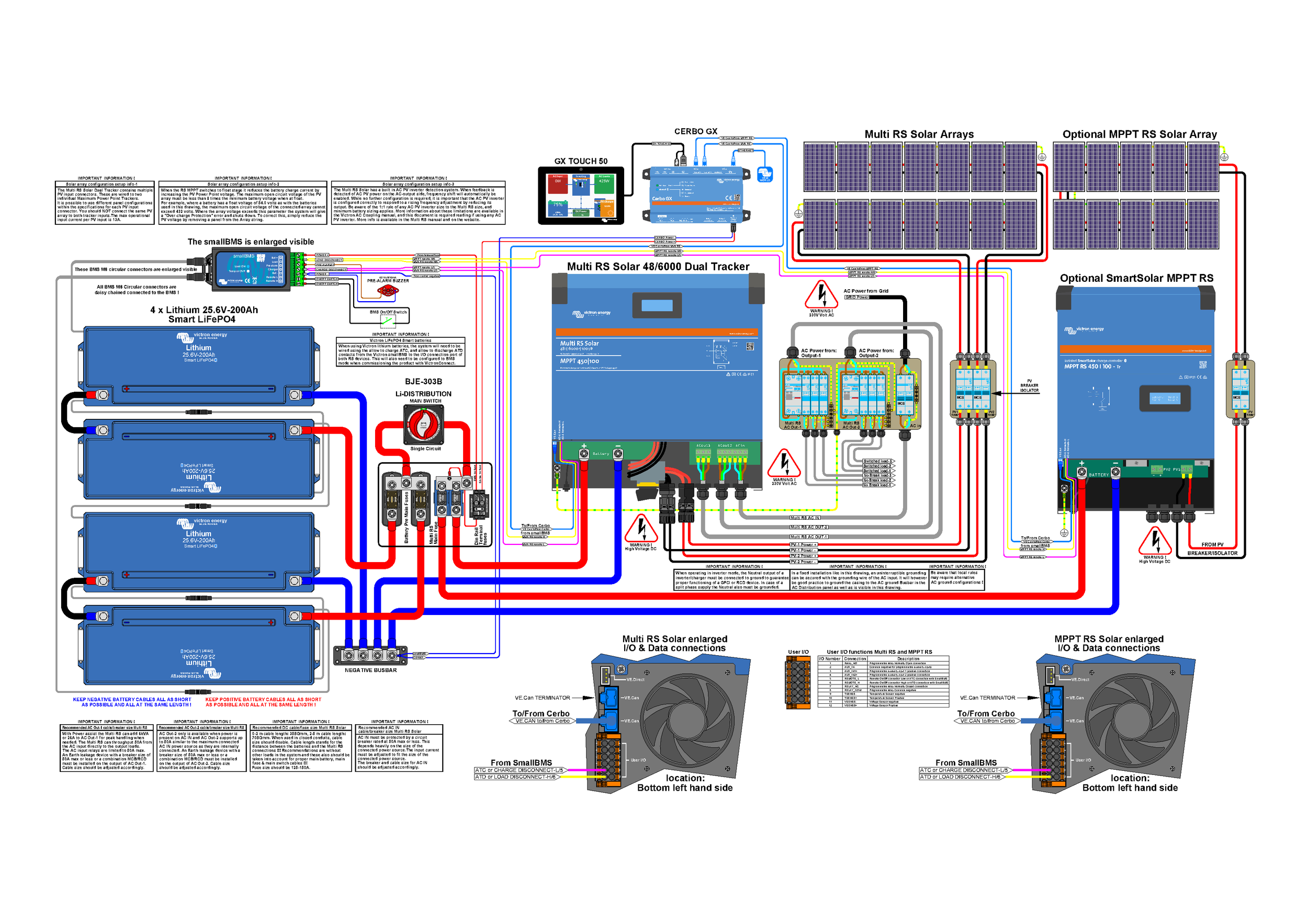

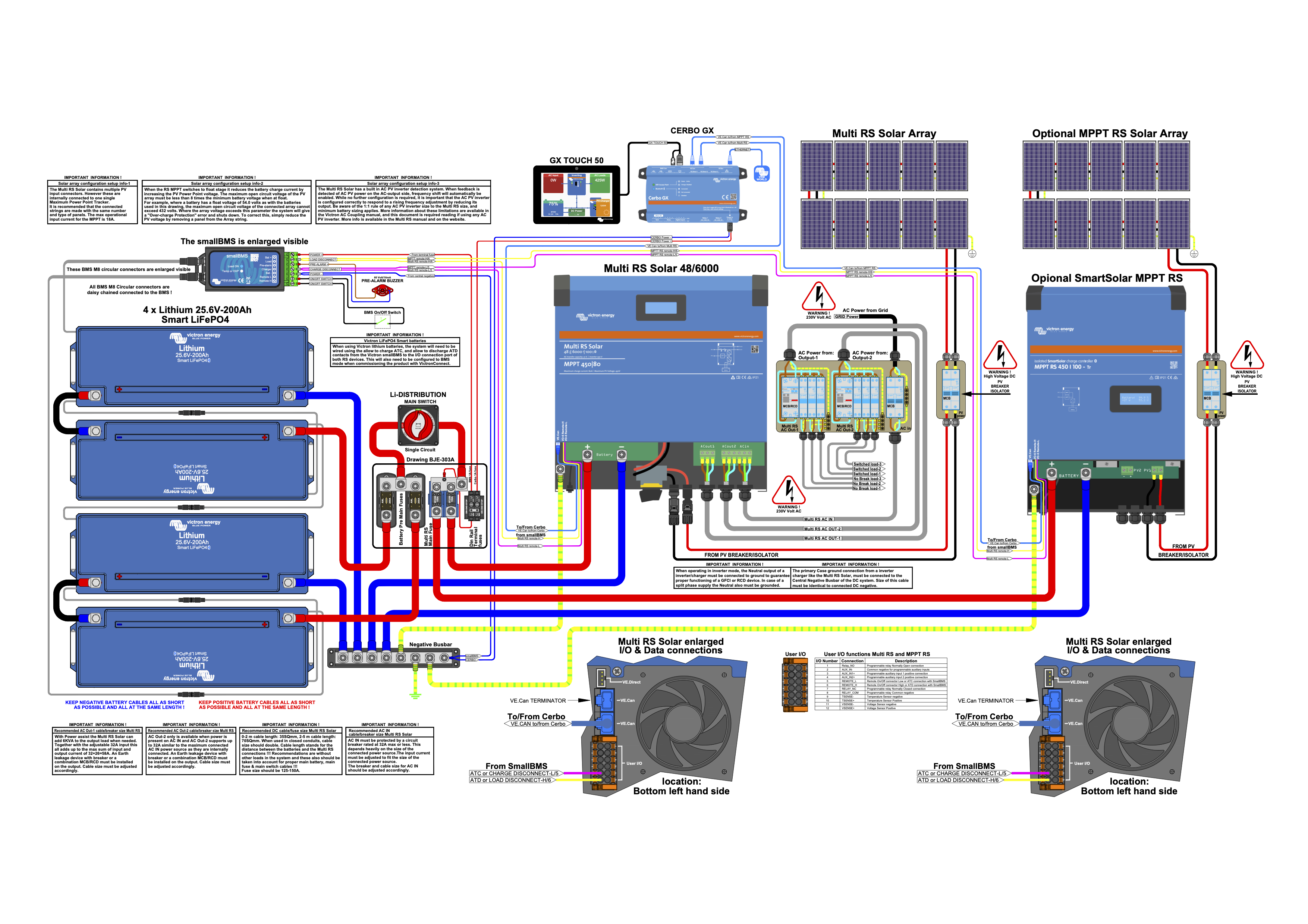

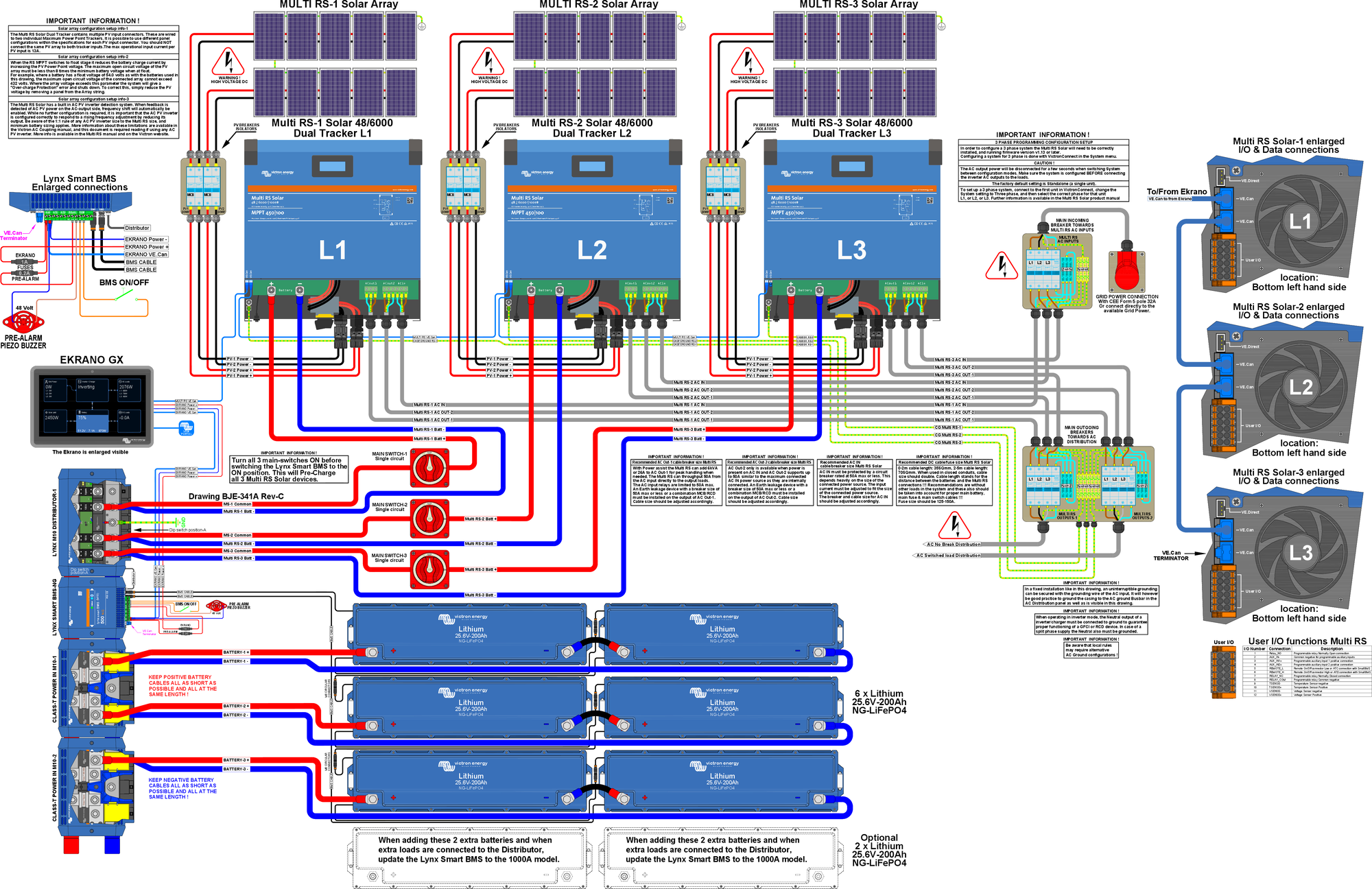

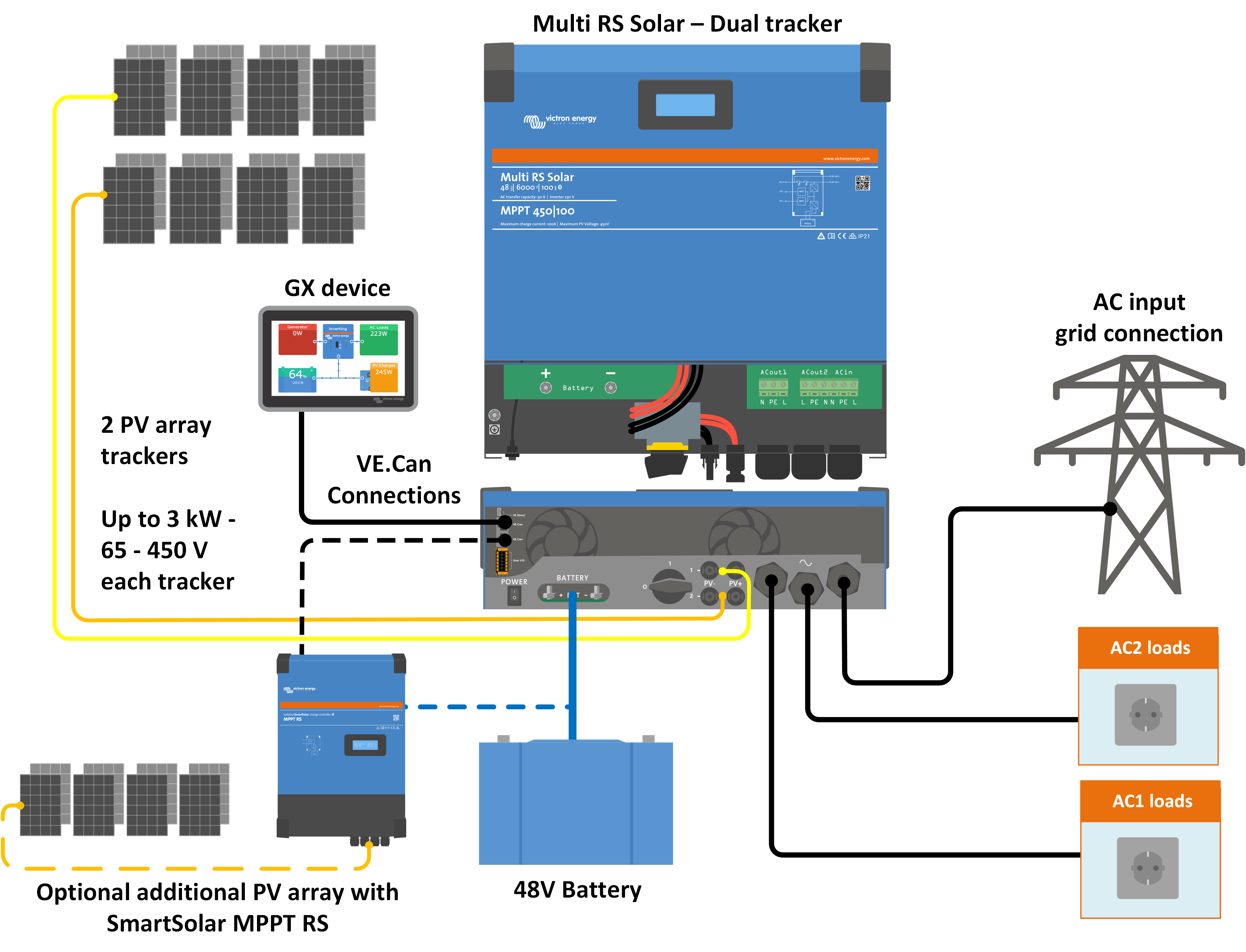

8.3. Appendix C : Example Wiring Diagram
![Multi_RS_2_tracker-diagram.pdf](image/164bf7667e498e.png)
![Multi RS Solar full wiring diagram](image/164bf76681cb9f.png)
See here for highest resolution and most up-to-date schematics - https://www.victronenergy.com/inverters-chargers/multi-rs-solar#system-schematic

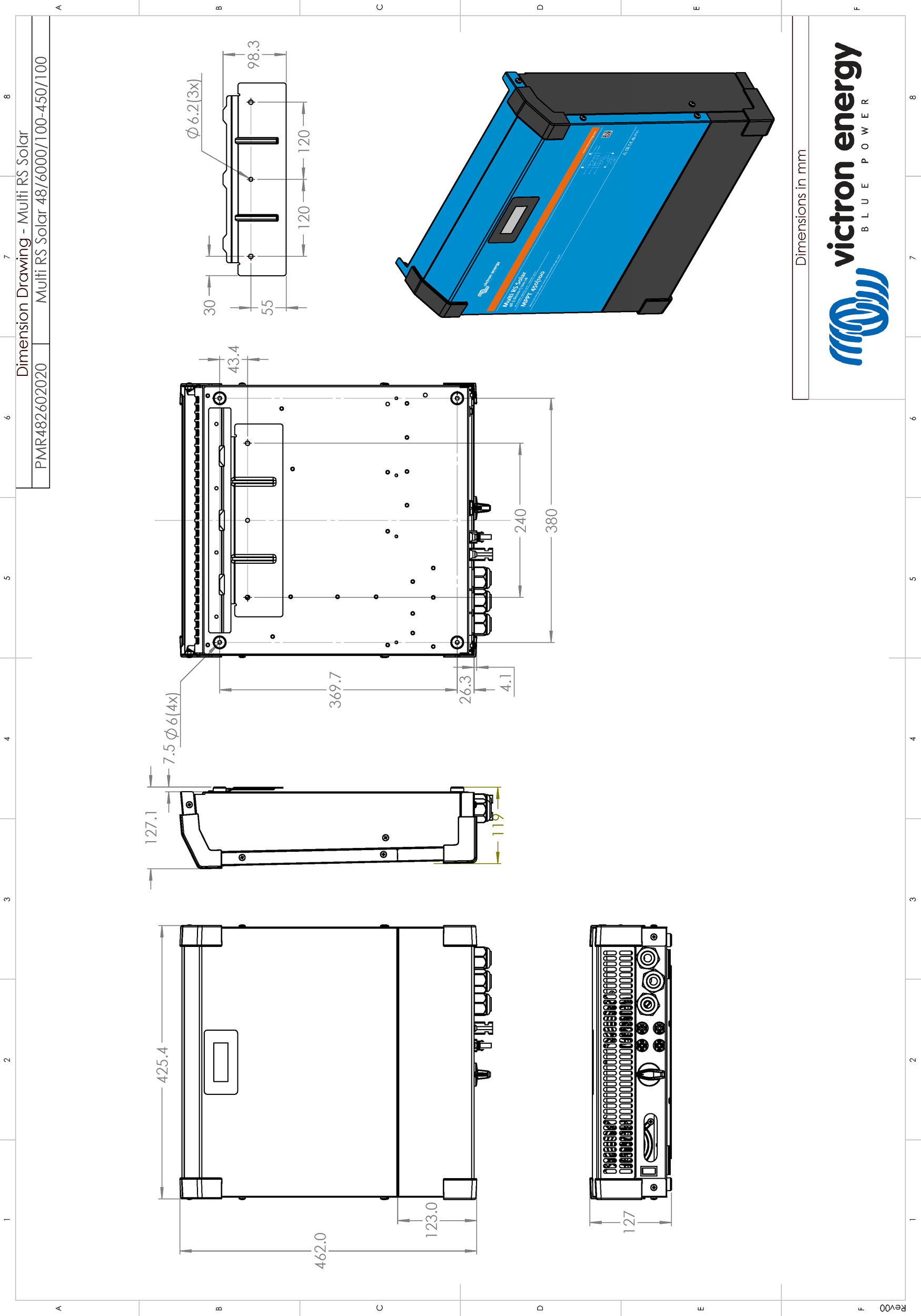

8.4. Appendix D : Dimensions
![Multi RS Solar](image/164bf7668a8990.png)
